M1 Carbine King Arms – Disassembly – EN

M1 CARBINE KING ARMS – Review
Part 2 – Disassembly



The replica requires no special tool, Phillips and flat screwdrivers and hex keys are enough.

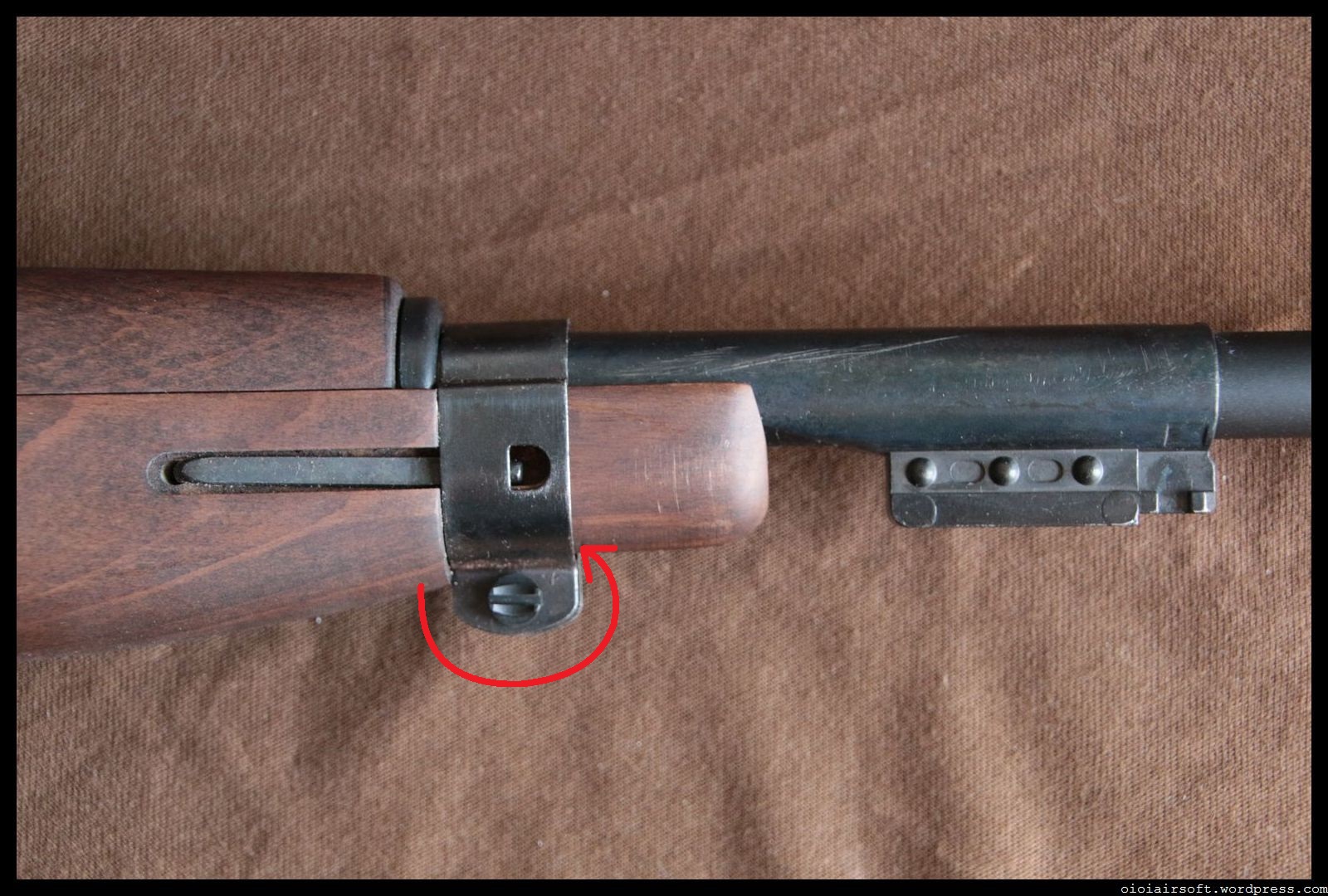

1 – Remove the sling holder by loosening the screw without needing to remove it completely.

IMG_0083mod

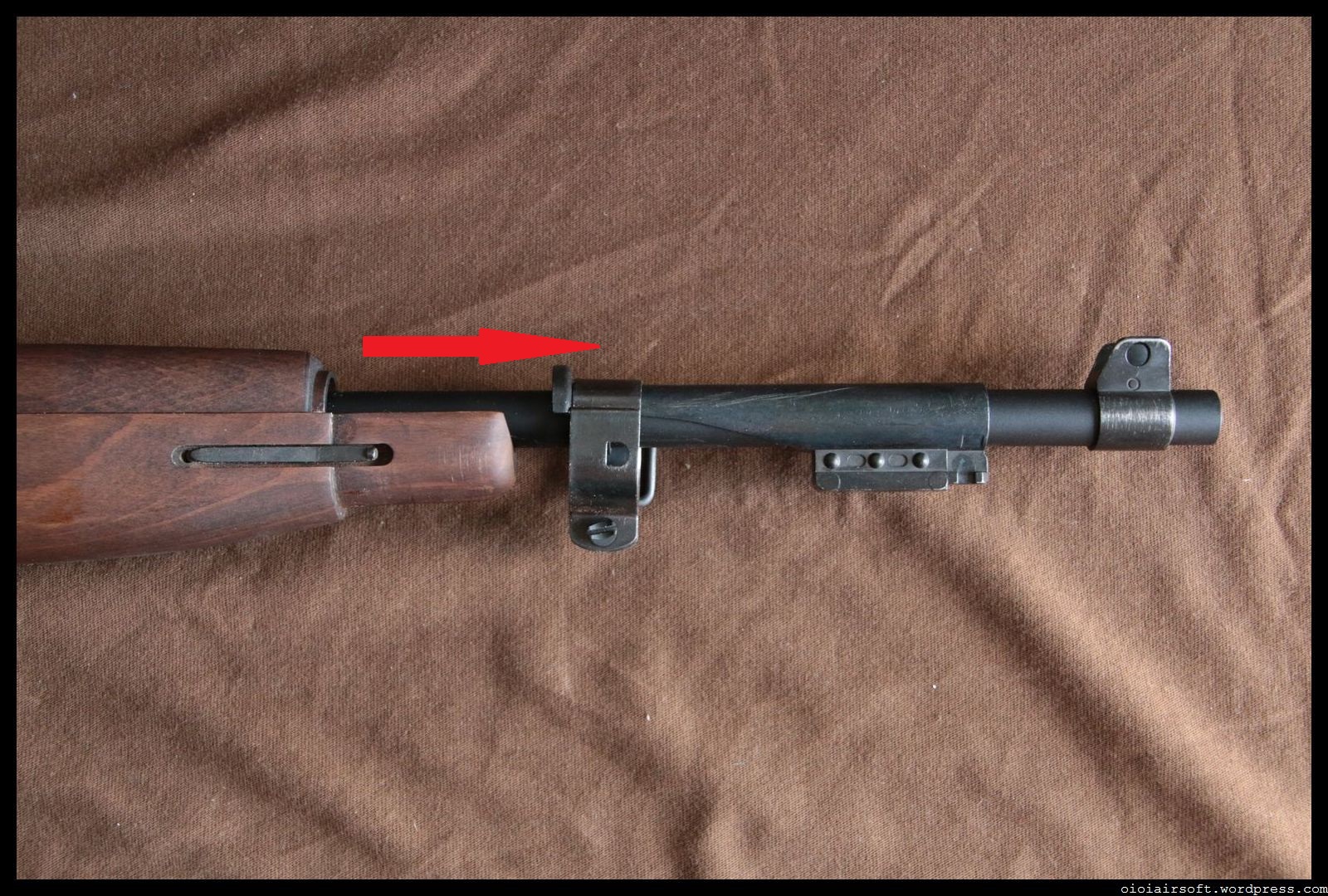

2 – Slide the sling holder forward.

IMG_0085mod

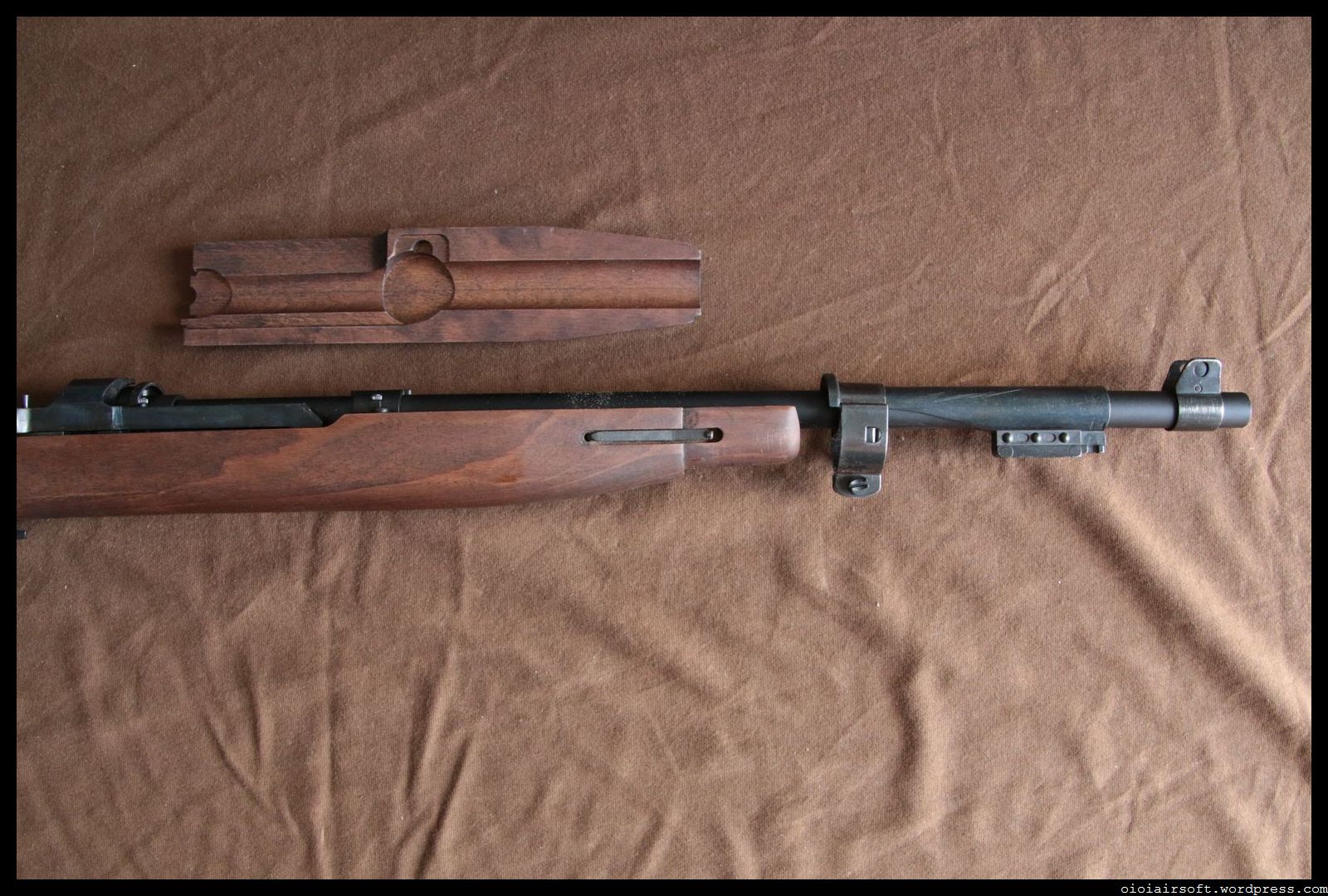

3 – Remove the upper handguard.

IMG_0087

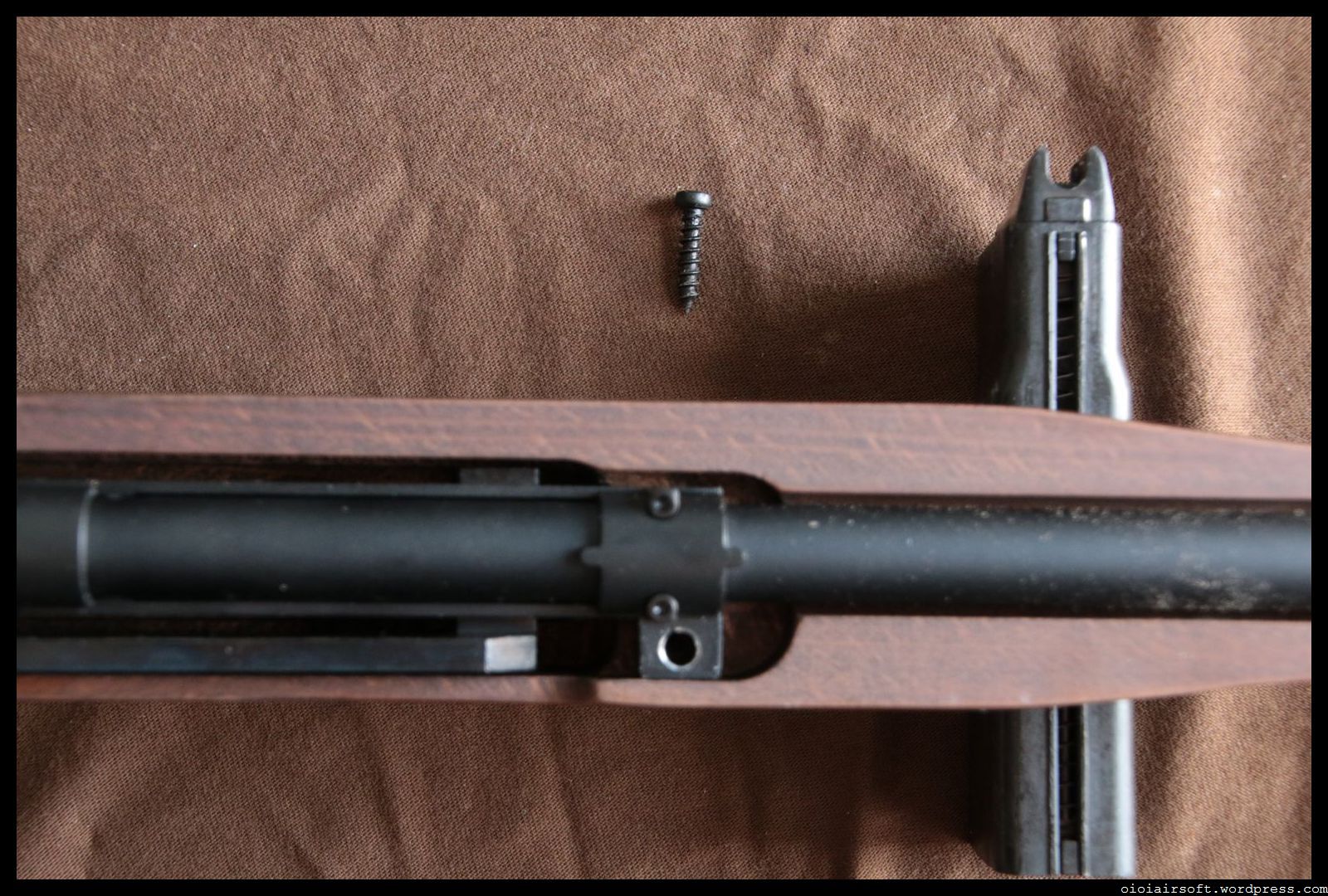

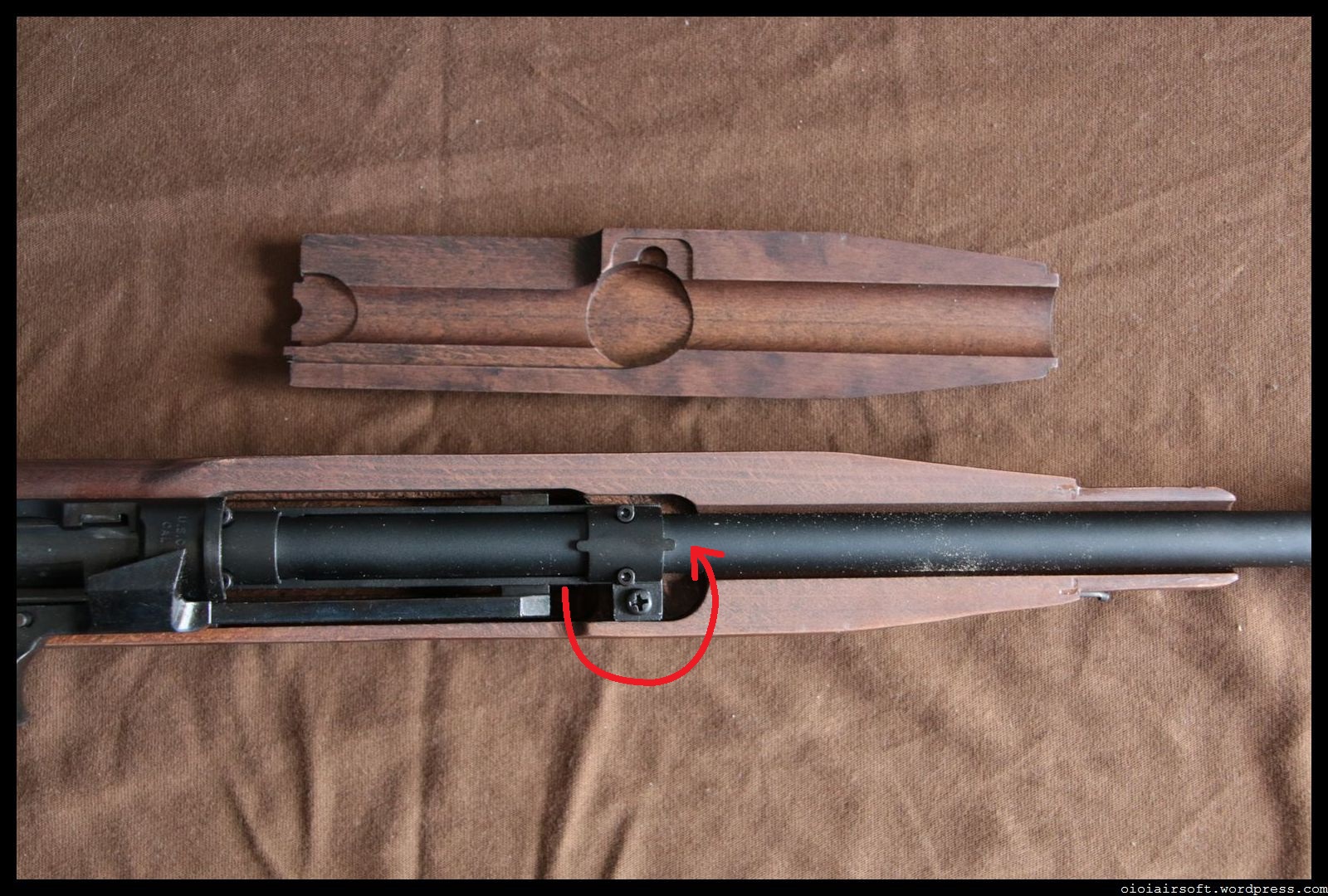

4 – Remove the Phillips screw that holds the barrel on the stock.

IMG_0088mod



IMG_0094

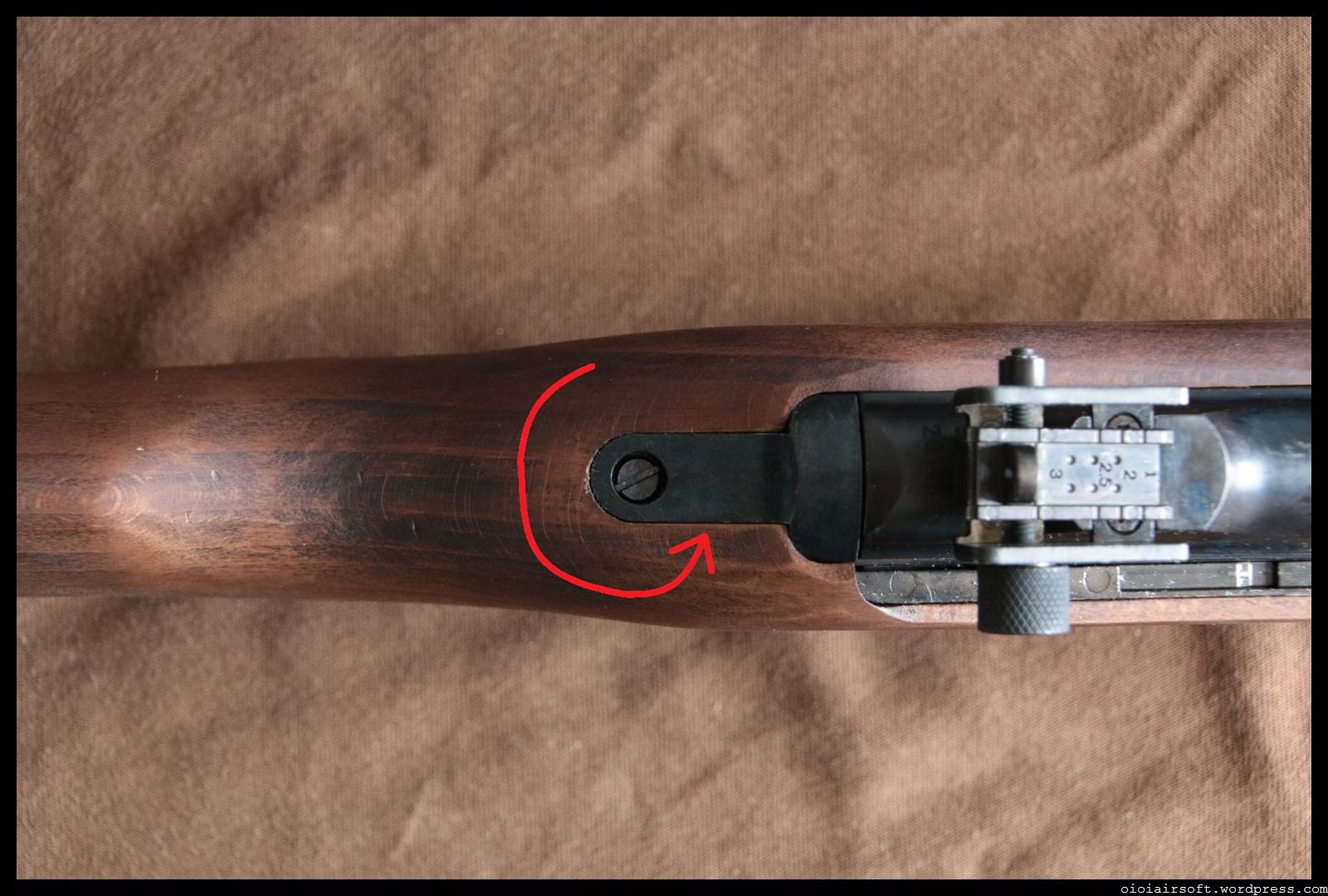

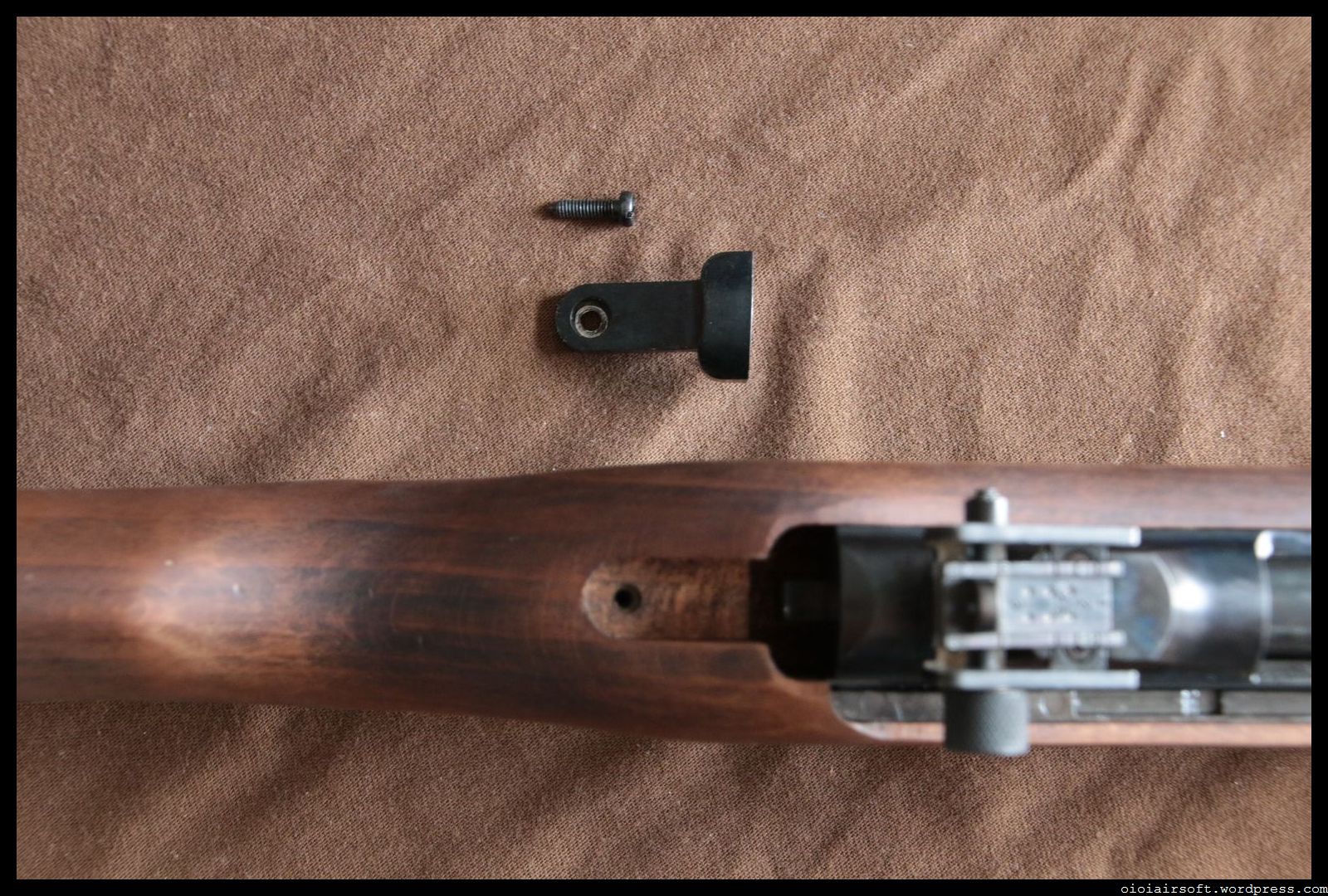

5 – Remove the screw on the back of the receiver.

IMG_0089mod



IMG_0090

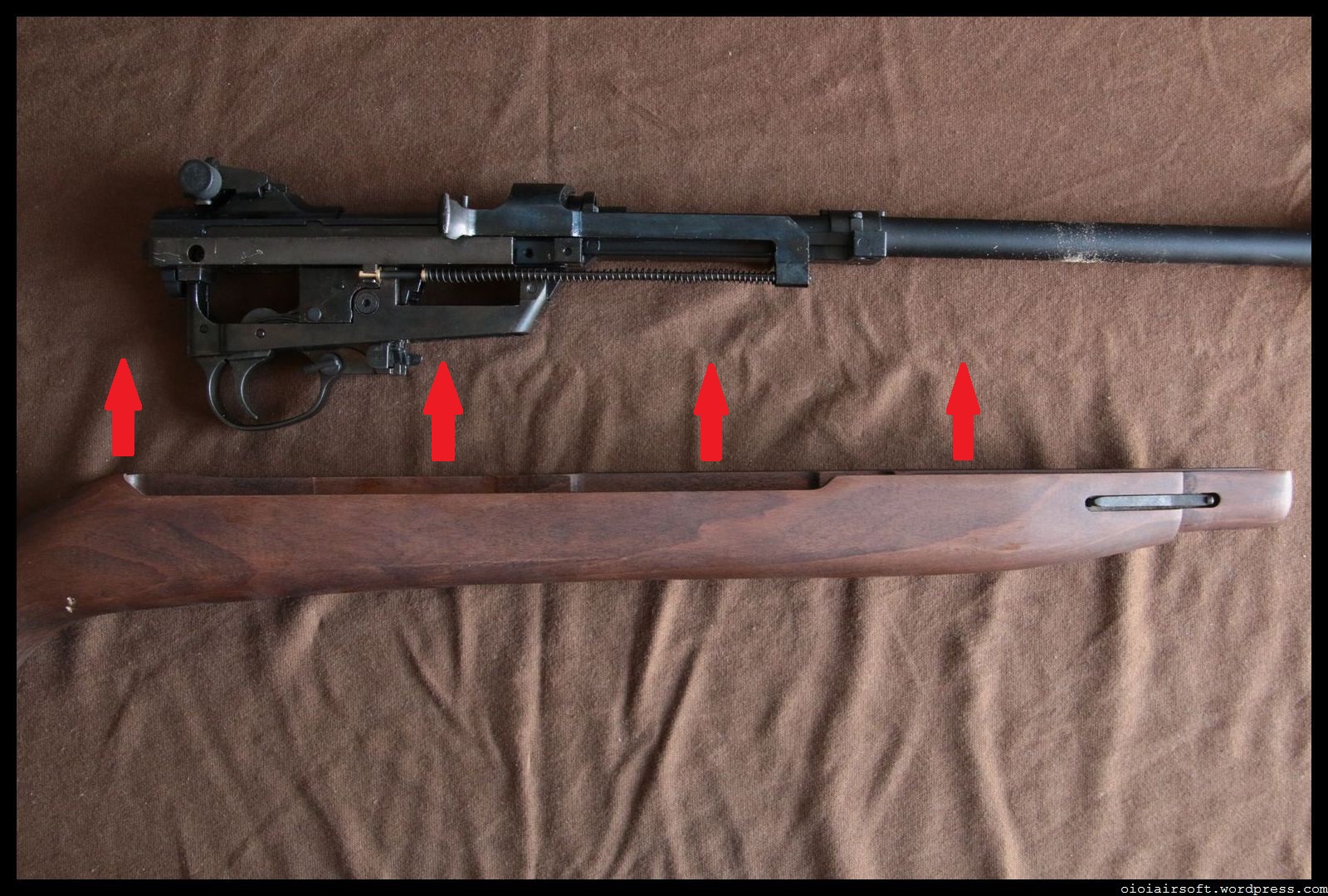

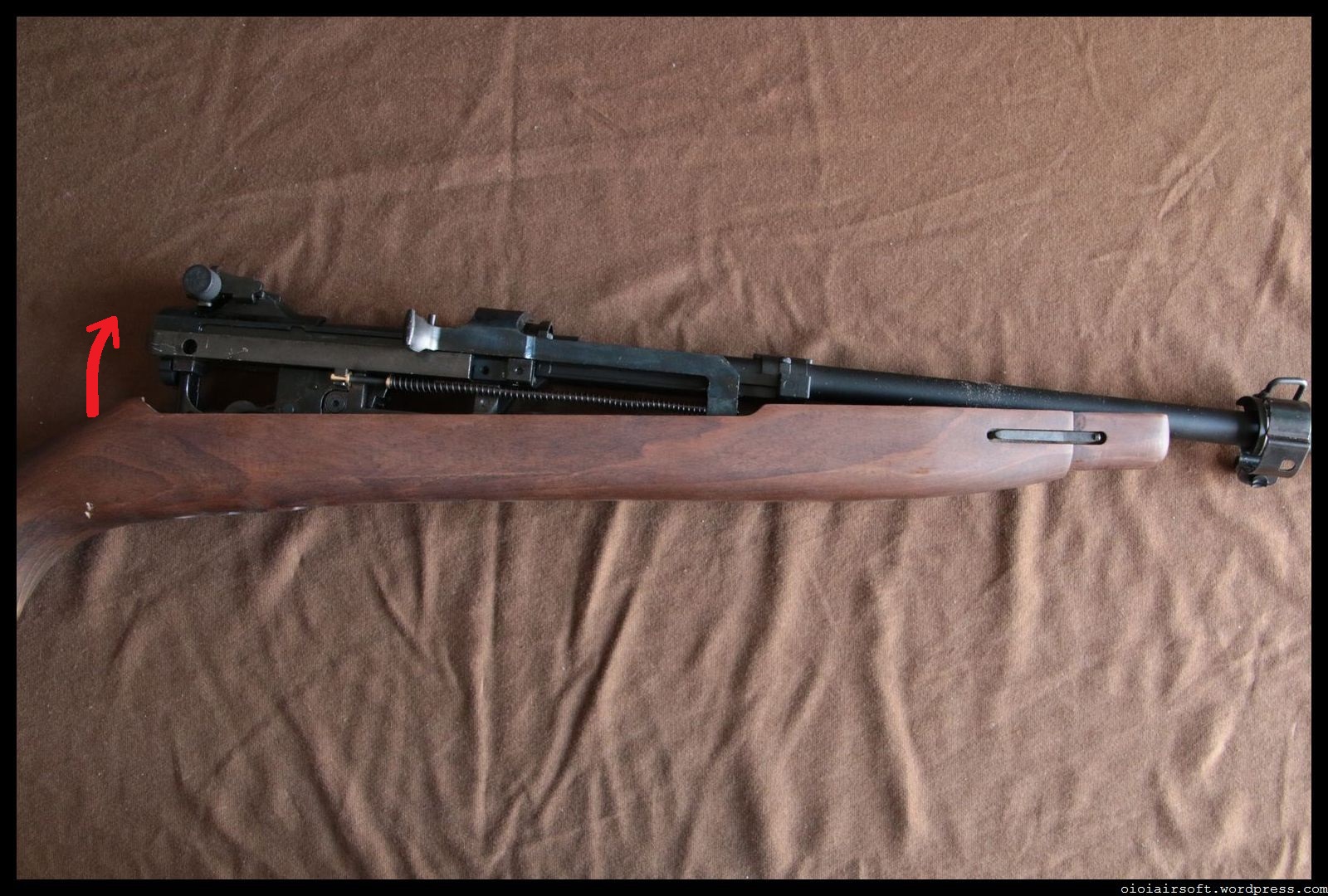

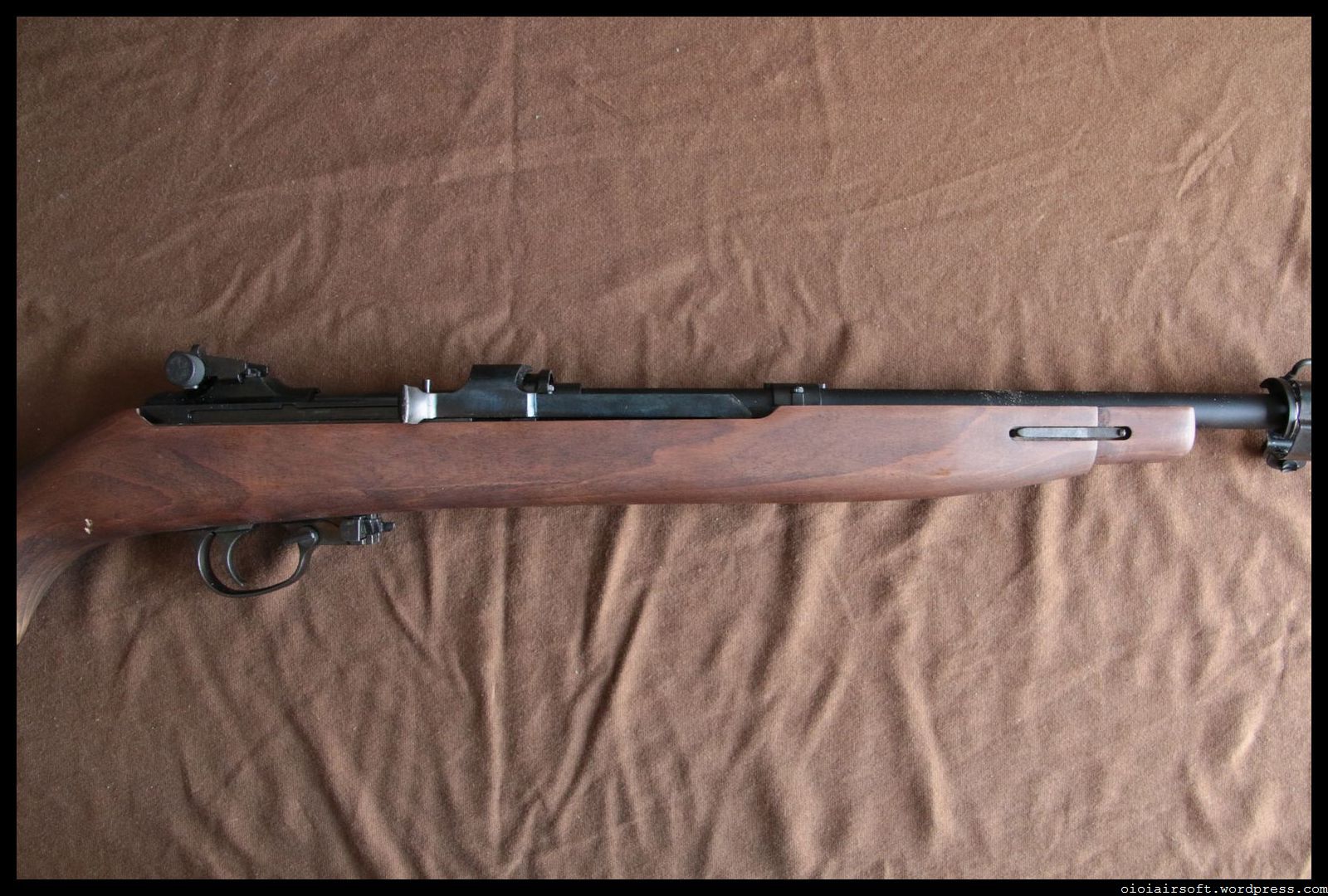

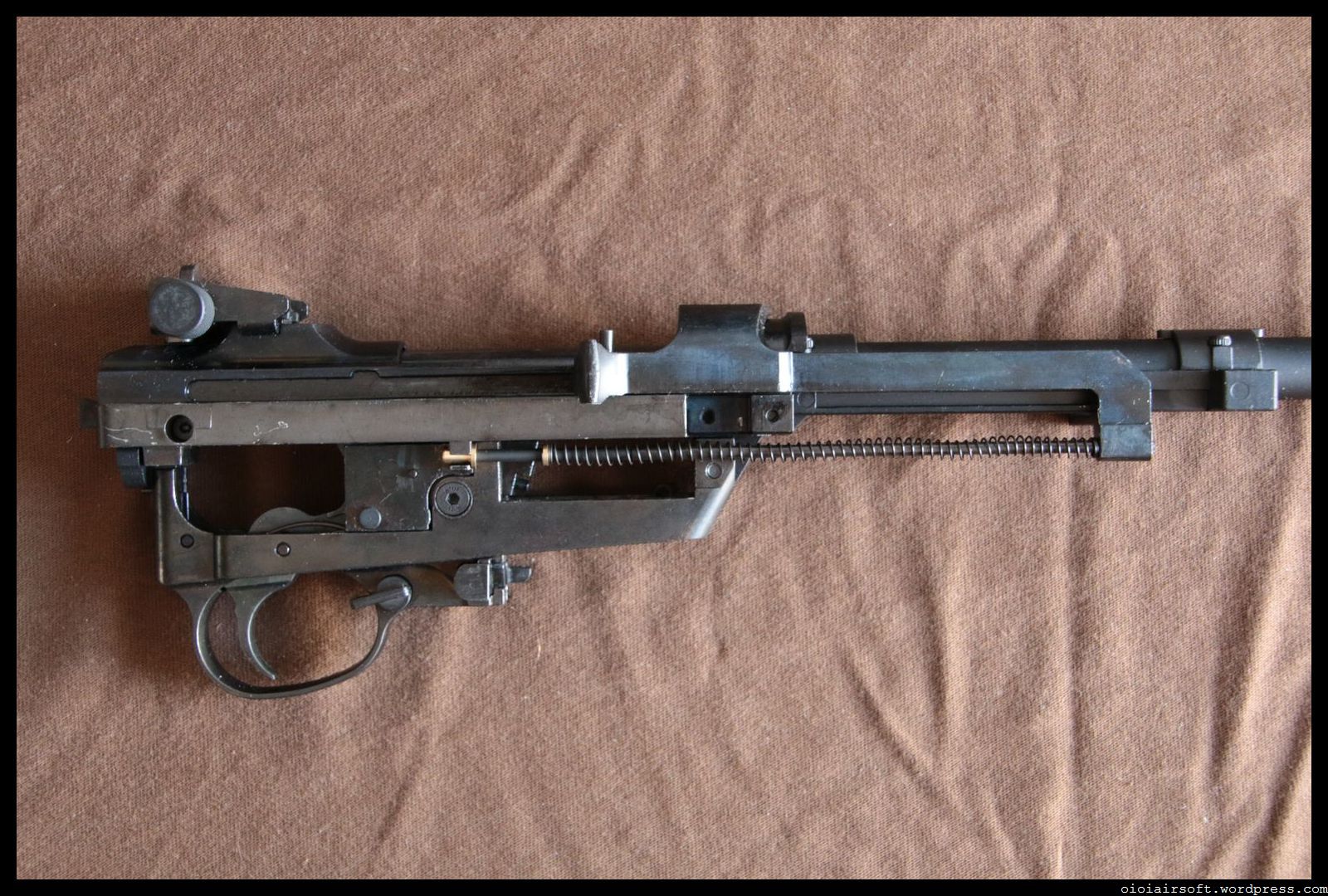

6 – Put the replica on her left side and gently remove the mechanics from the stock.

IMG_0095



IMG_0096mod



IMG_0097mod



IMG_0098

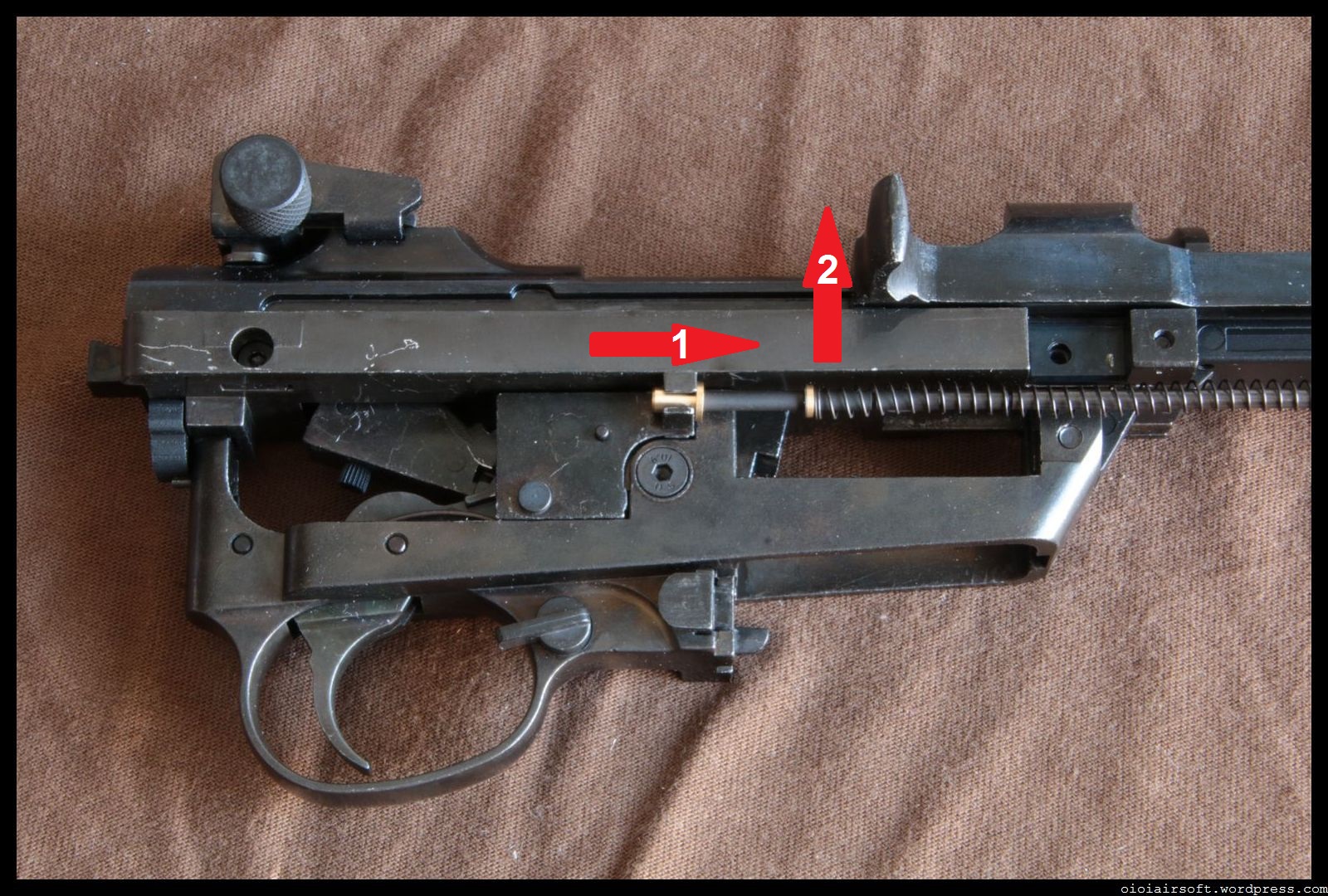

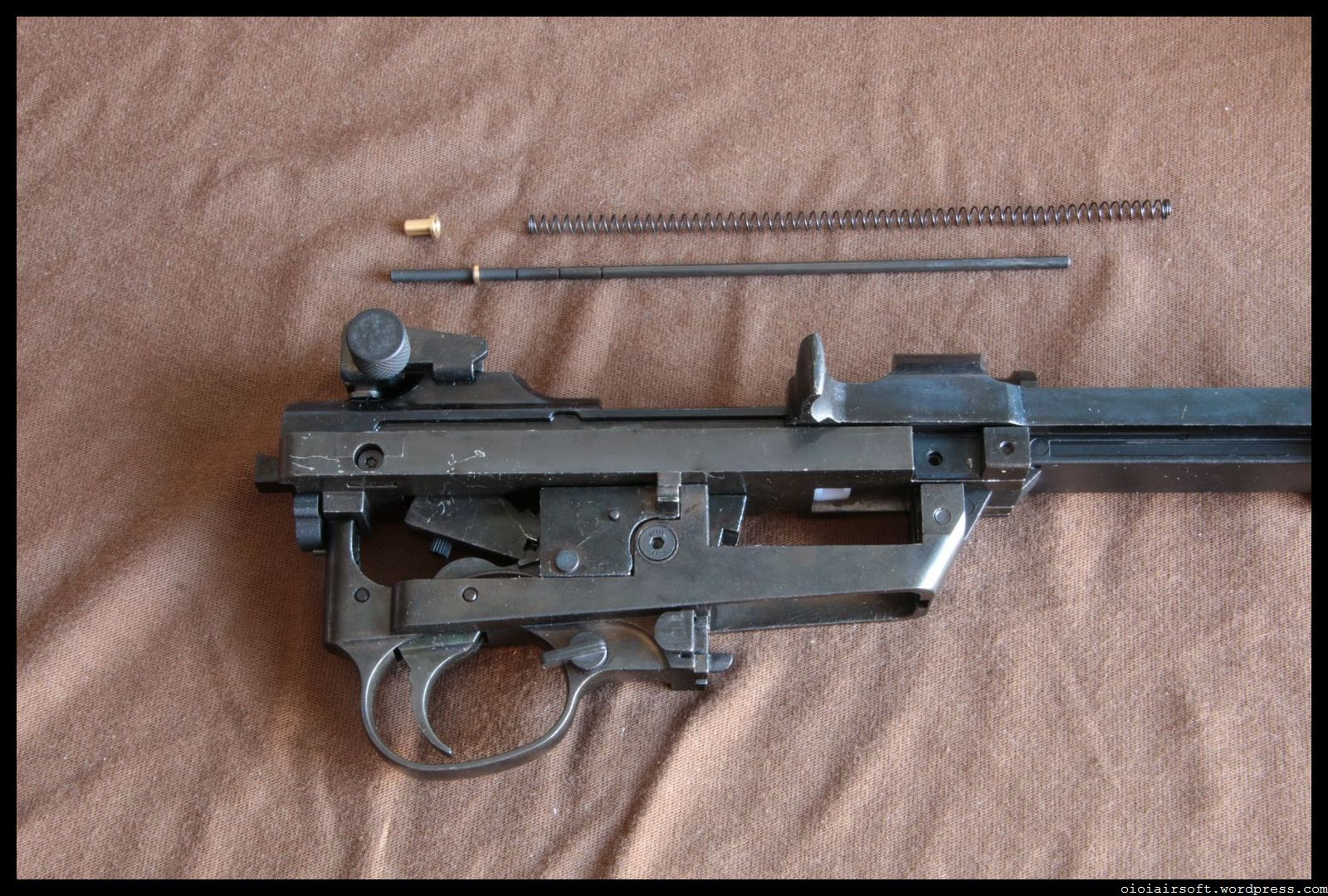

7 – Remove the spring guide rod, his cap and the spring.

IMG_0137mod



IMG_0140

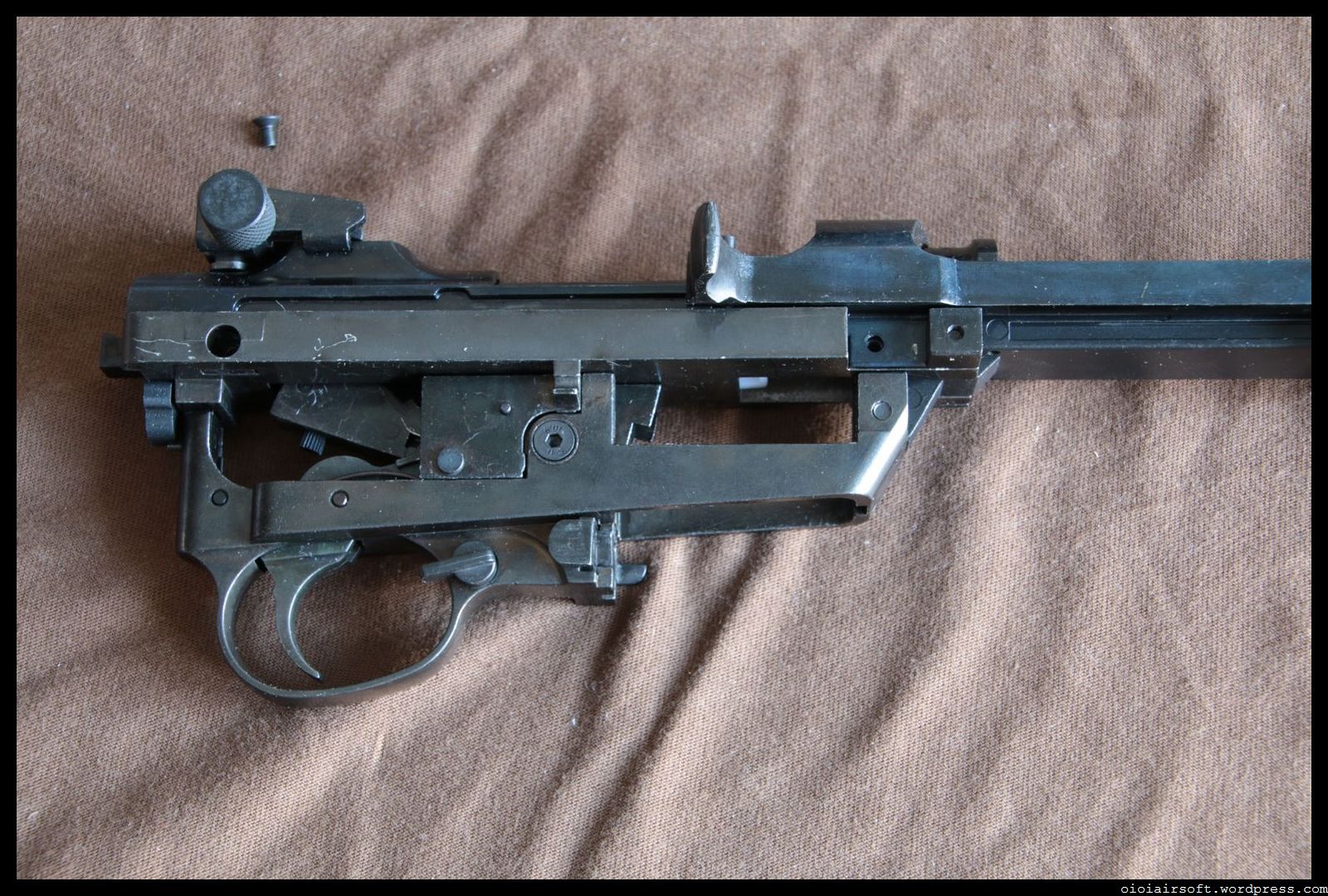

8 – Remove the screw under the rear sight on the right side.

IMG_0140mod



IMG_0146

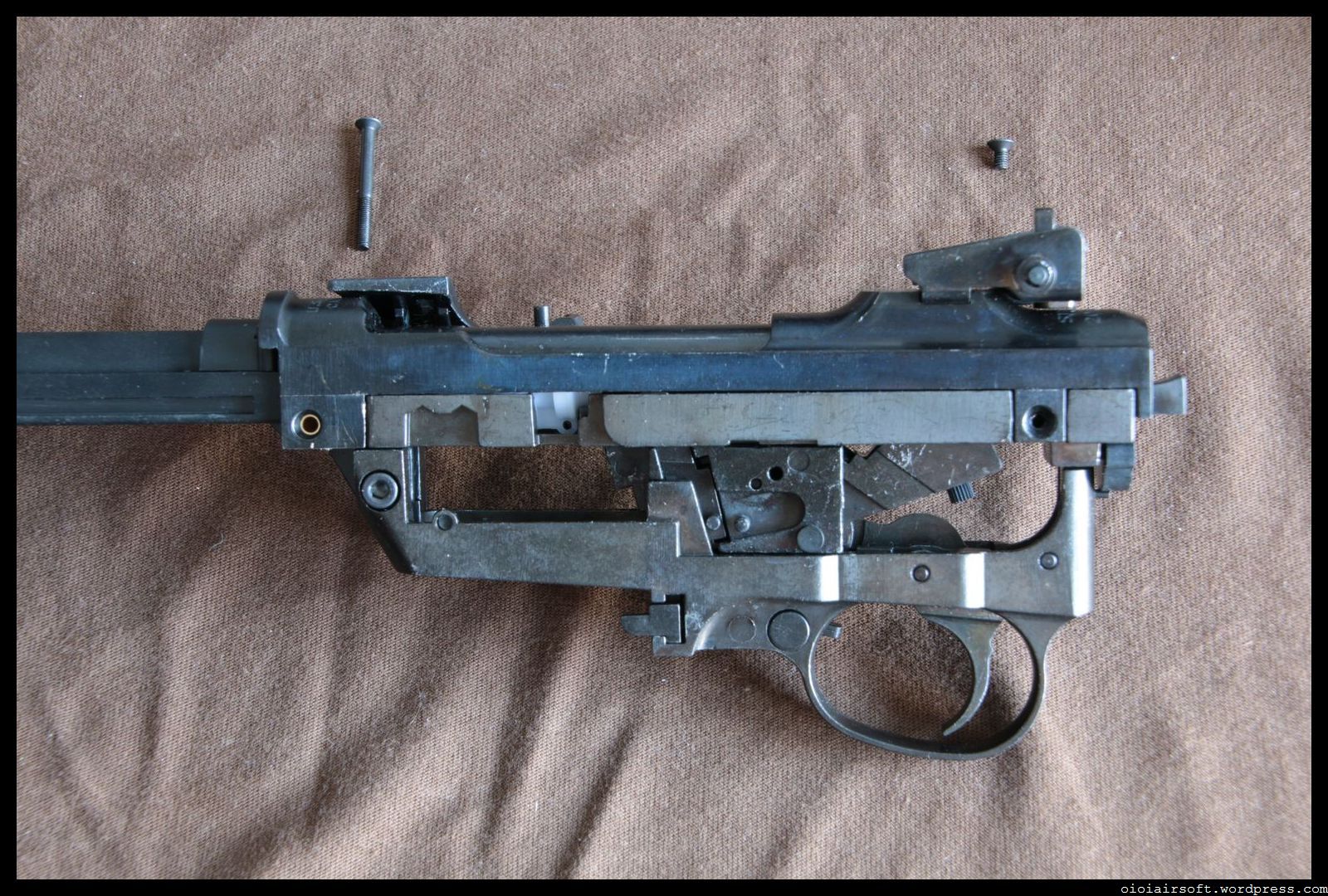

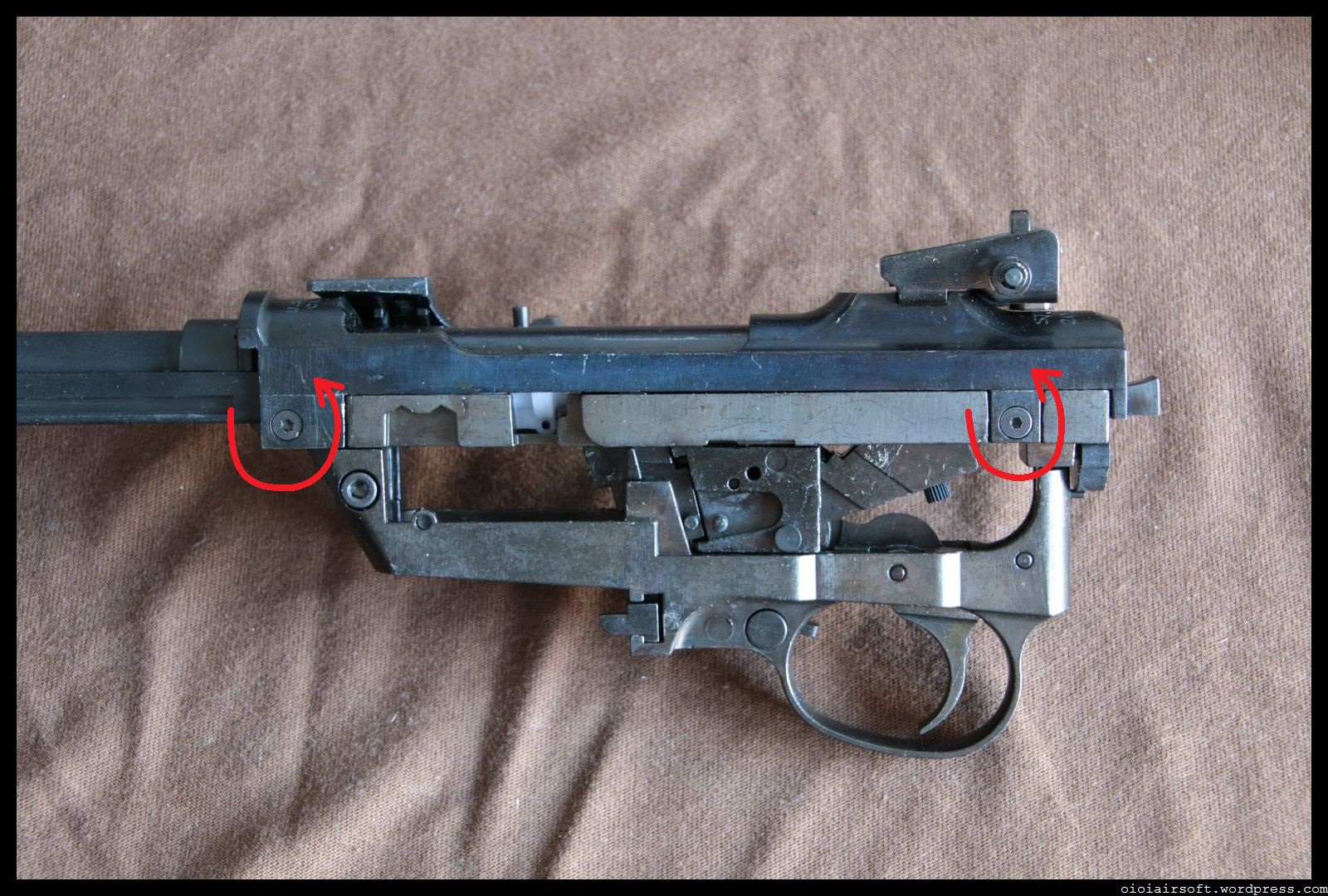

9 – Remove the two screws on the left side of the receiver.

IMG_0149mod



IMG_0152

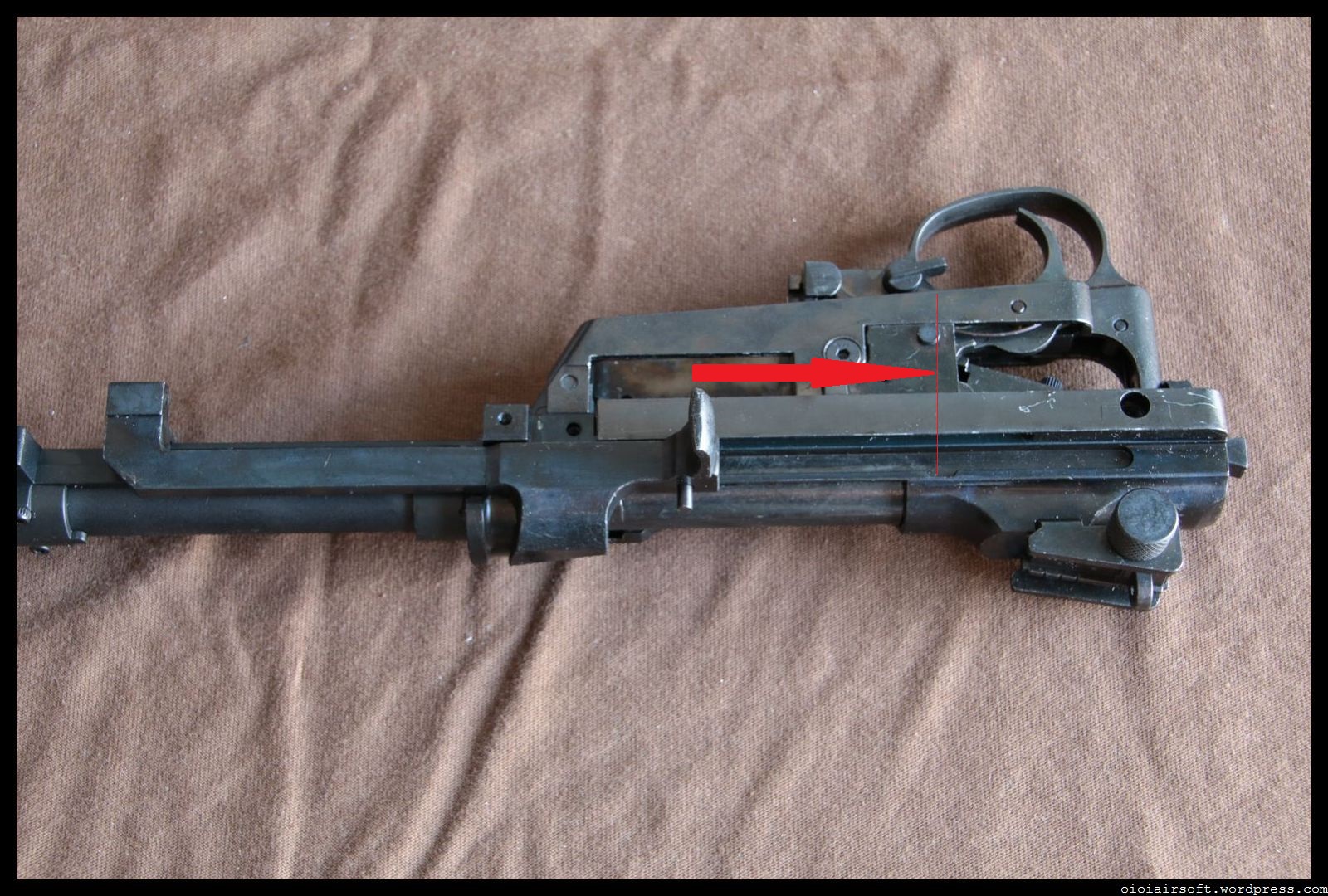

10 – Put the replica on her left side and move back the cocking lever until the notch.

IMG_0155mod

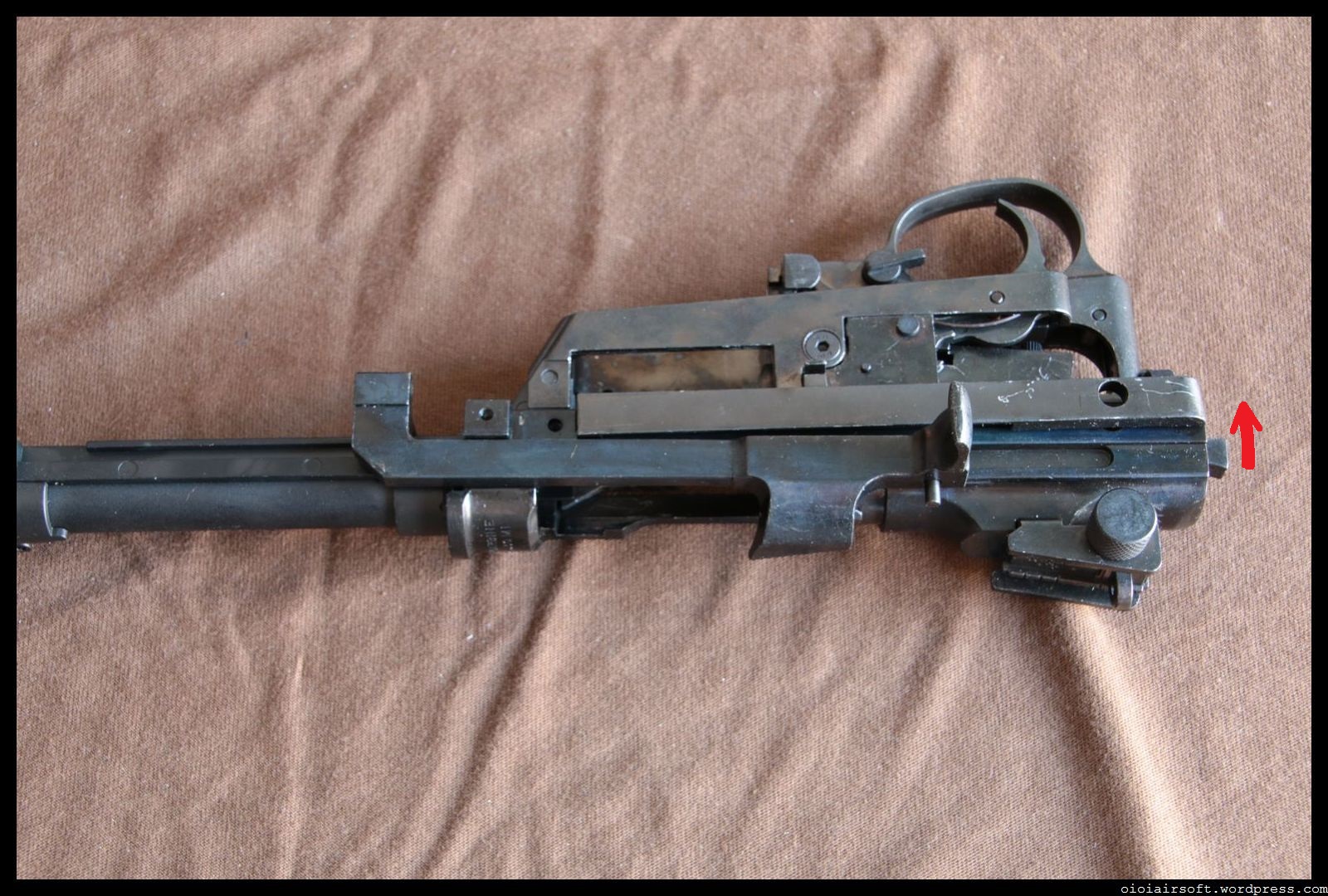

11 – Spread slightly the two parts of the receiver, just enough so that the cocking lever is no longer maintained in its tracks.

IMG_0161mod

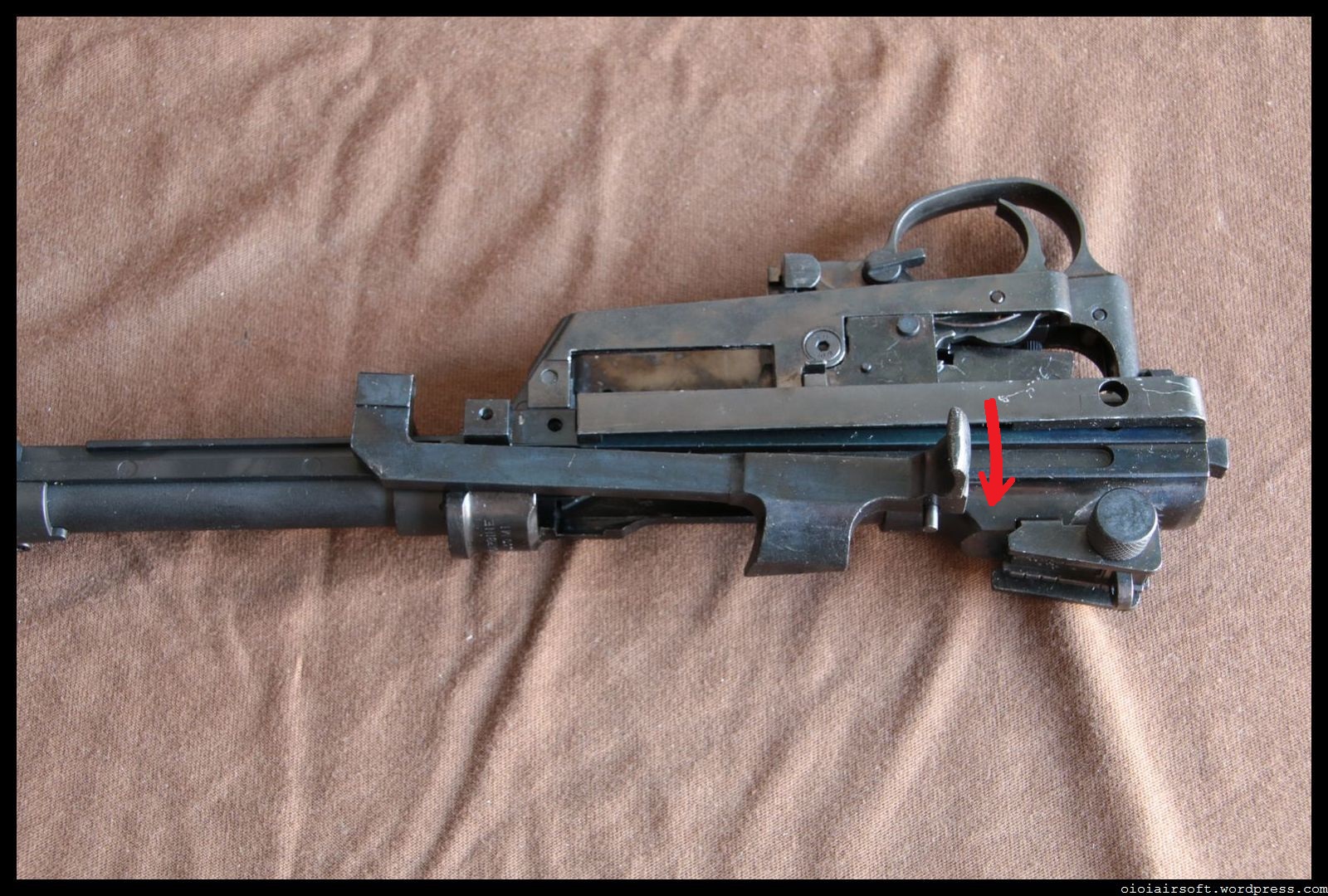

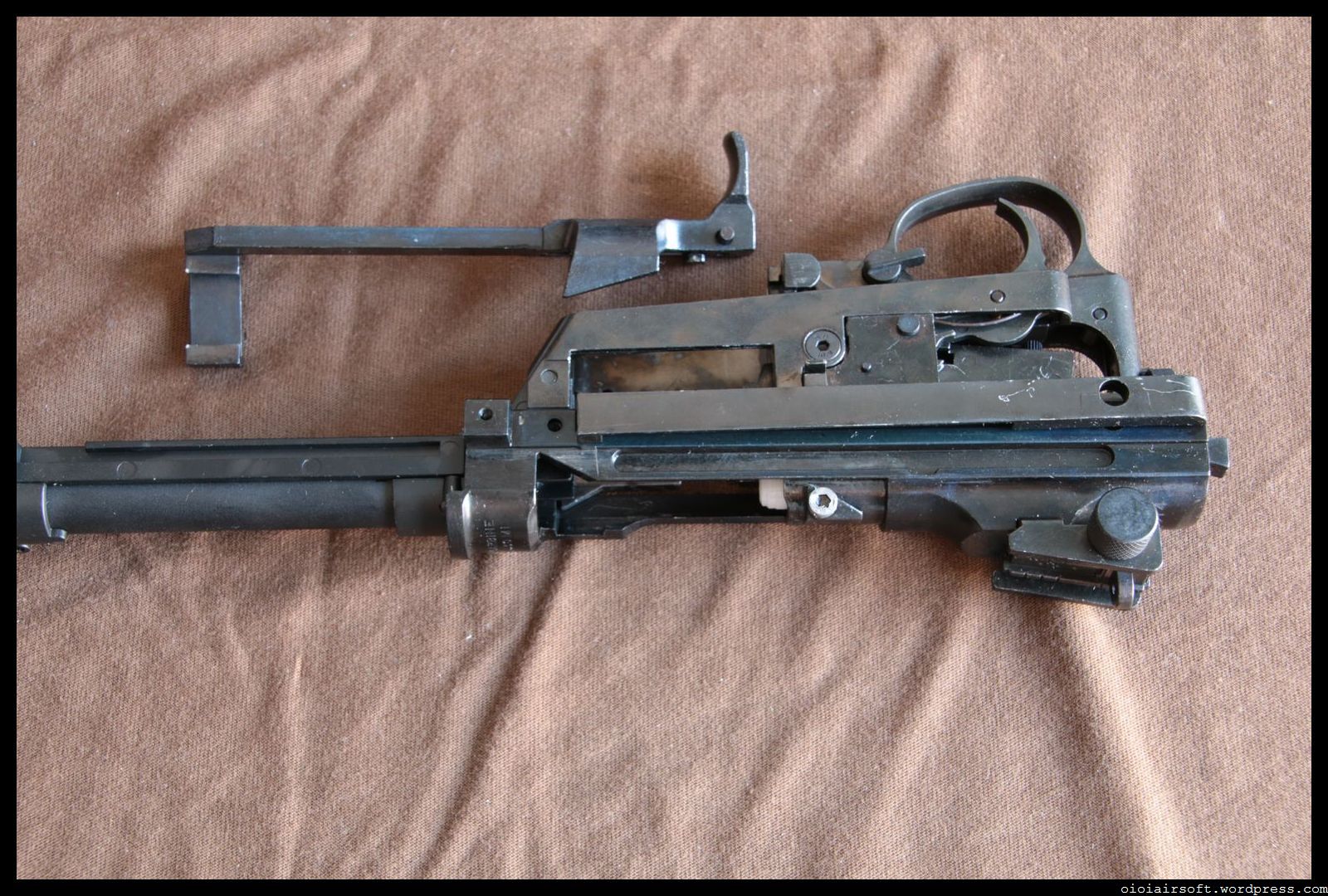

12 – Remove the cocking lever from its tracks.

IMG_0164mod



IMG_0170

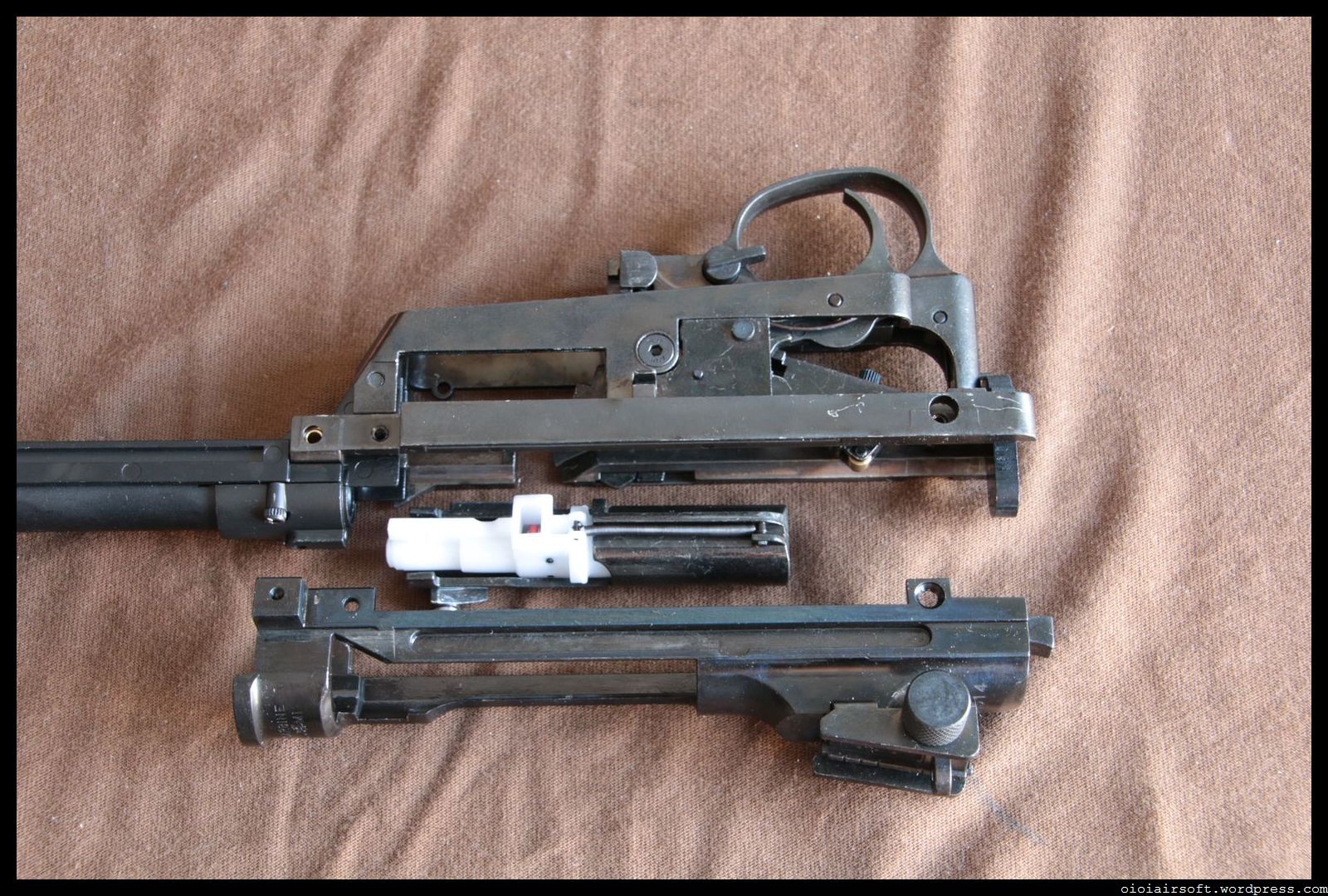

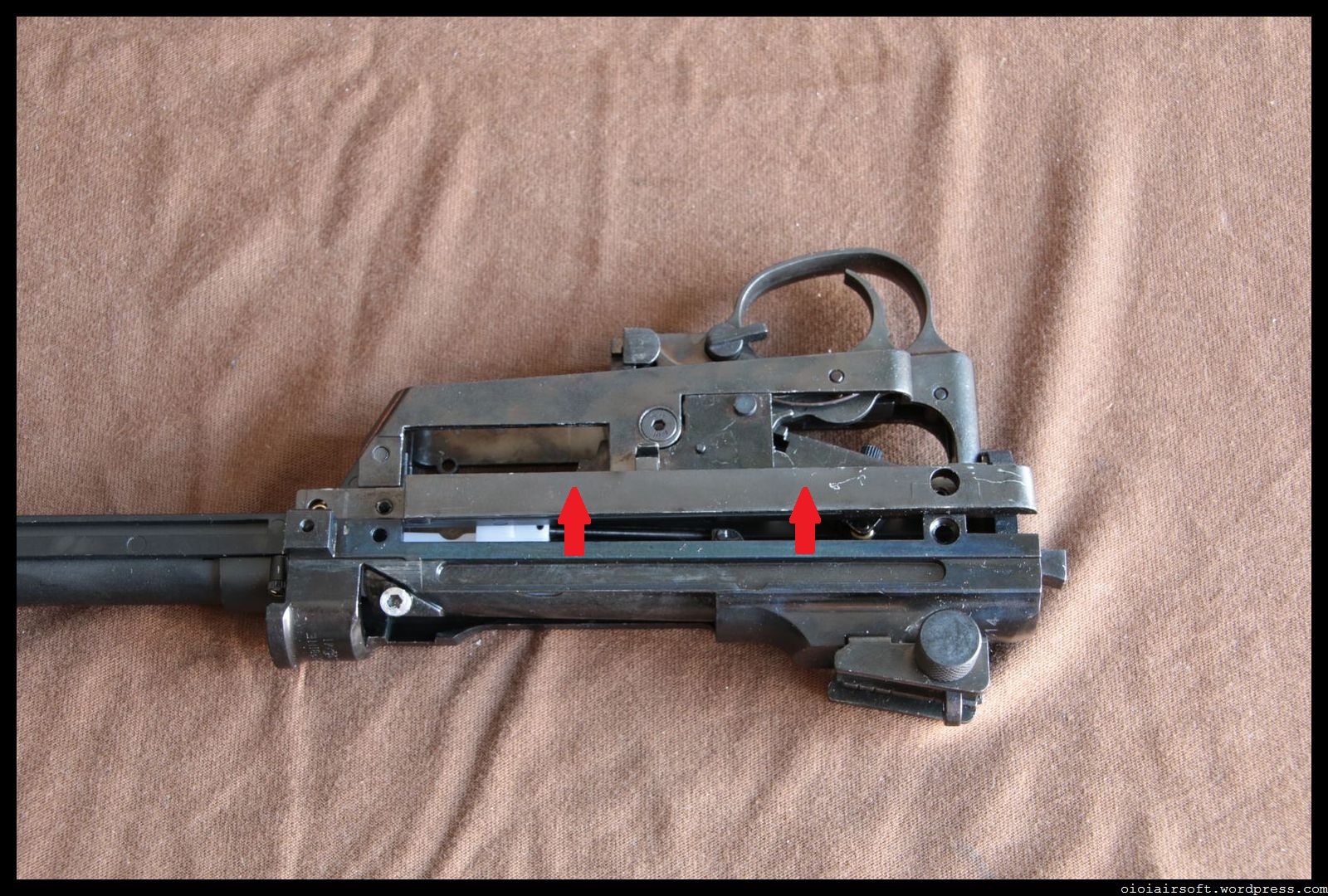

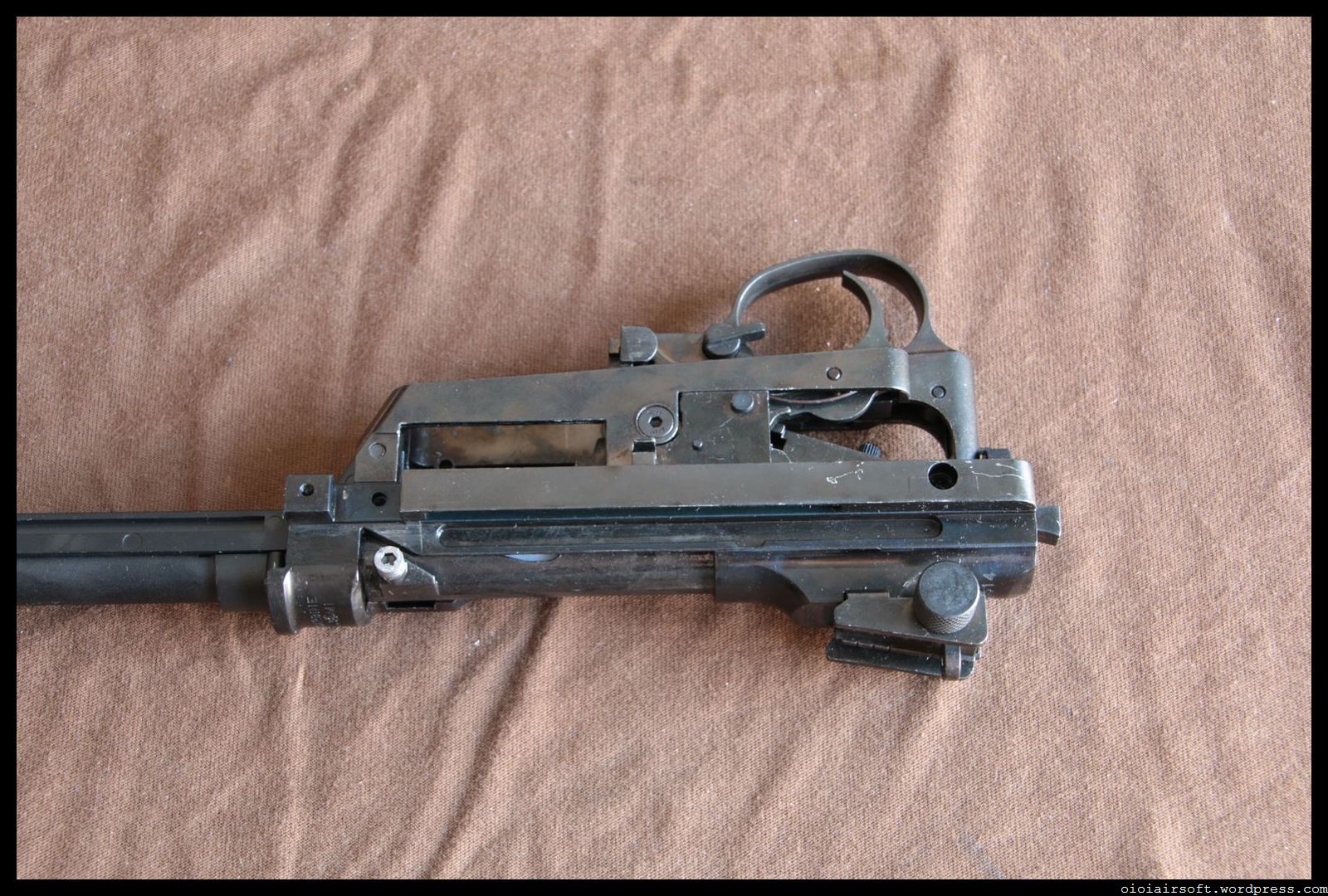

13 – Separate the two parts of the receiver.

IMG_0173



IMG_0176mod



IMG_0178

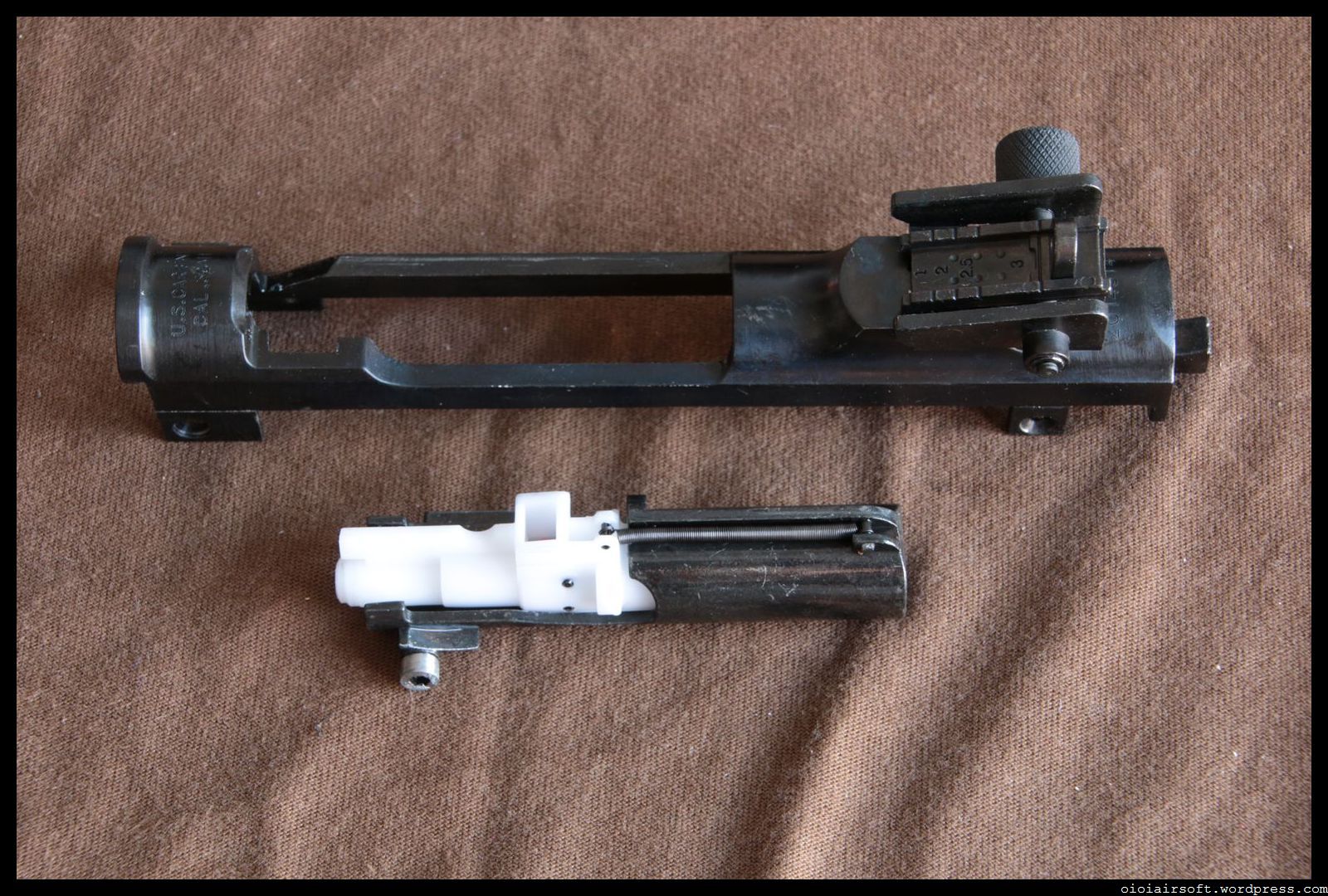

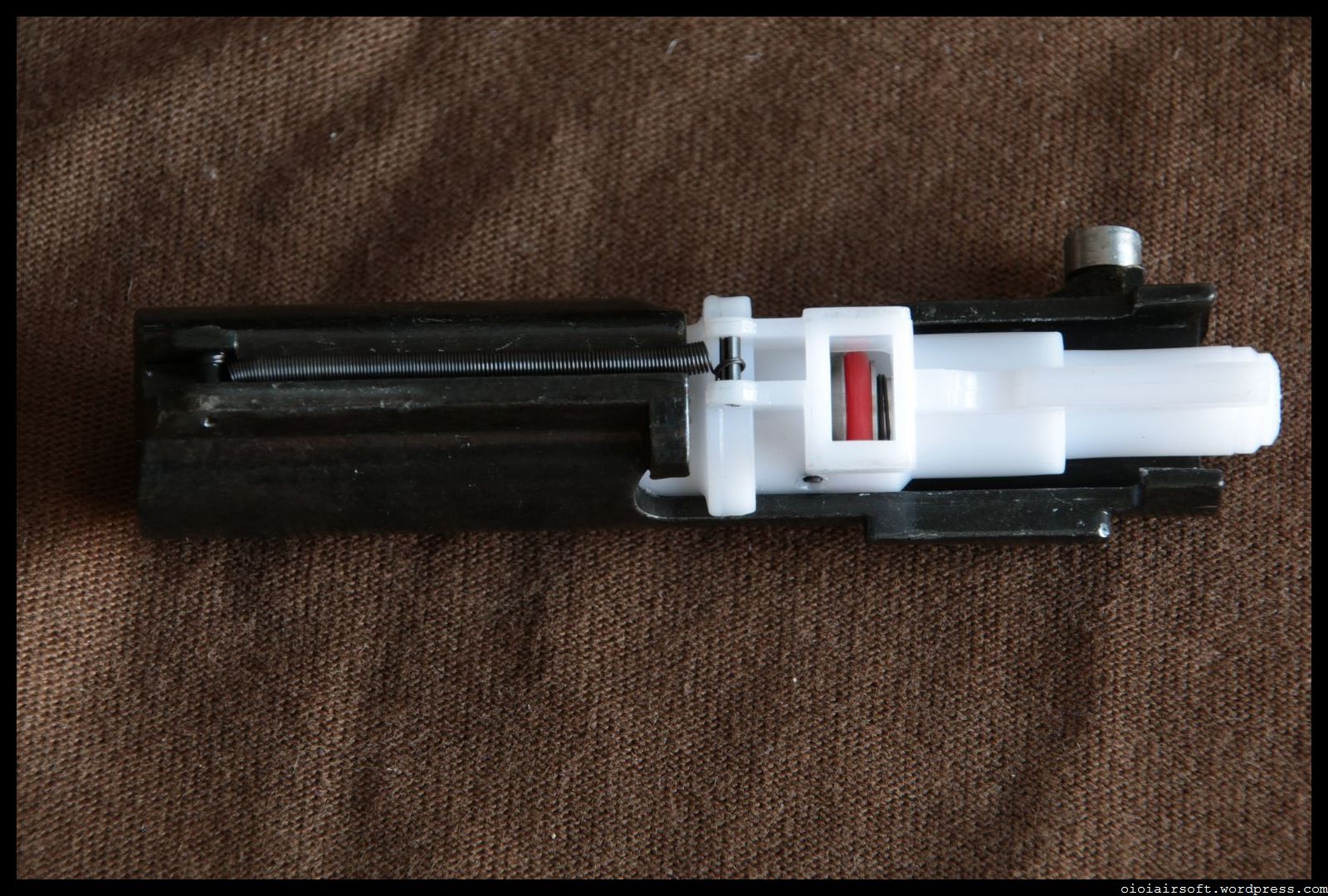

14 – Set aside the slide and its nozzle.

IMG_0181



IMG_0184

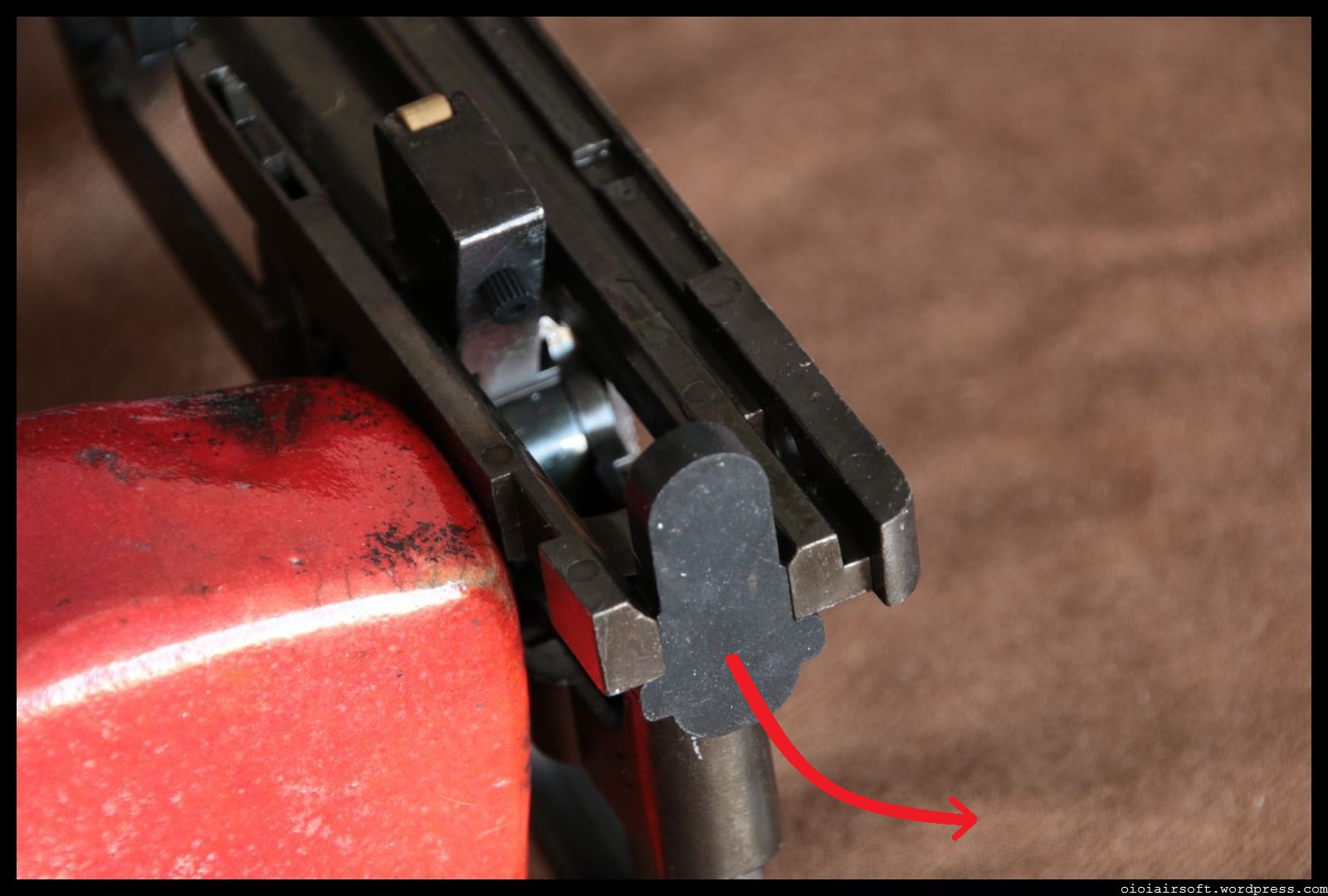

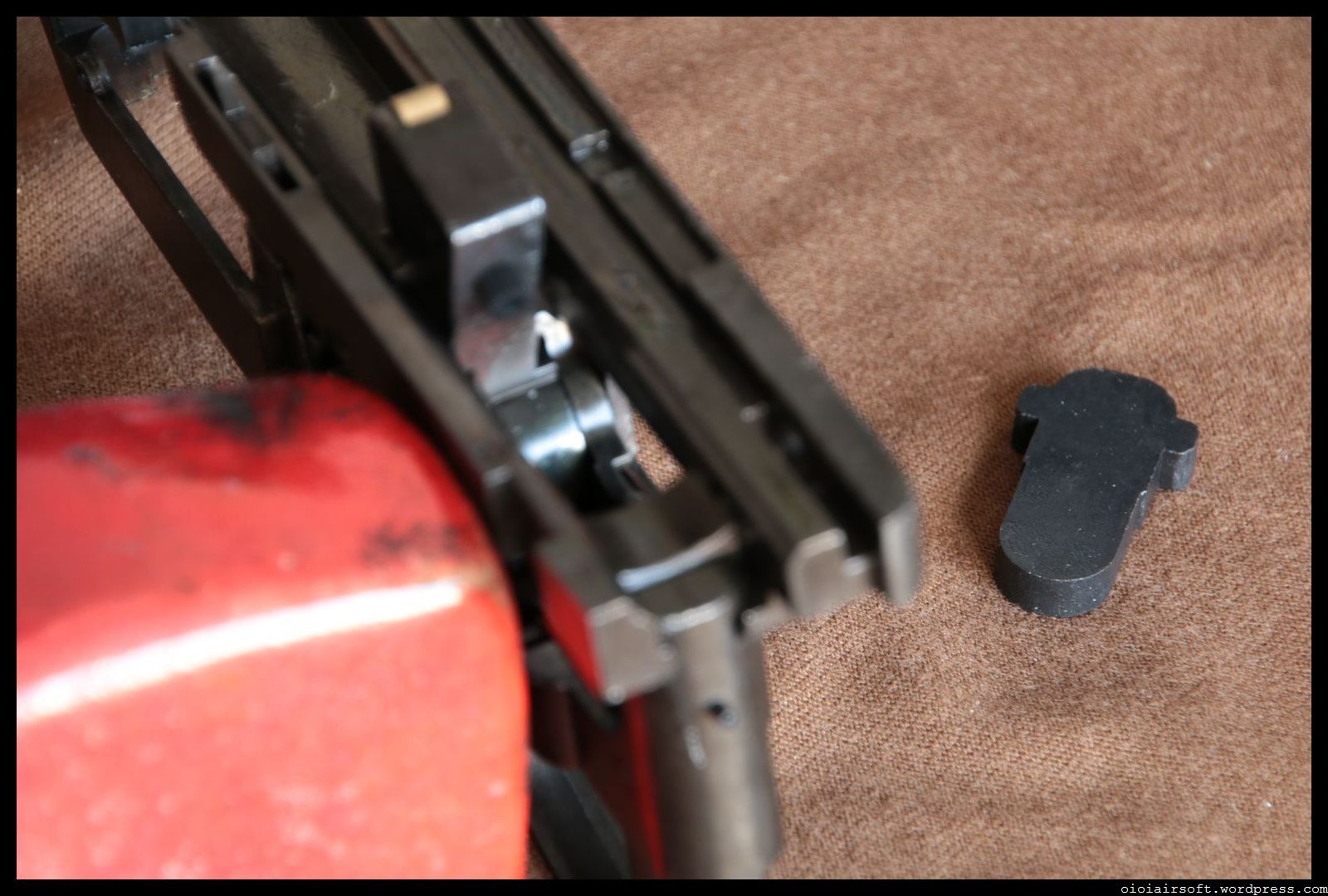

15 – Do not lose this rubber part.

IMG_0211mod



IMG_0213

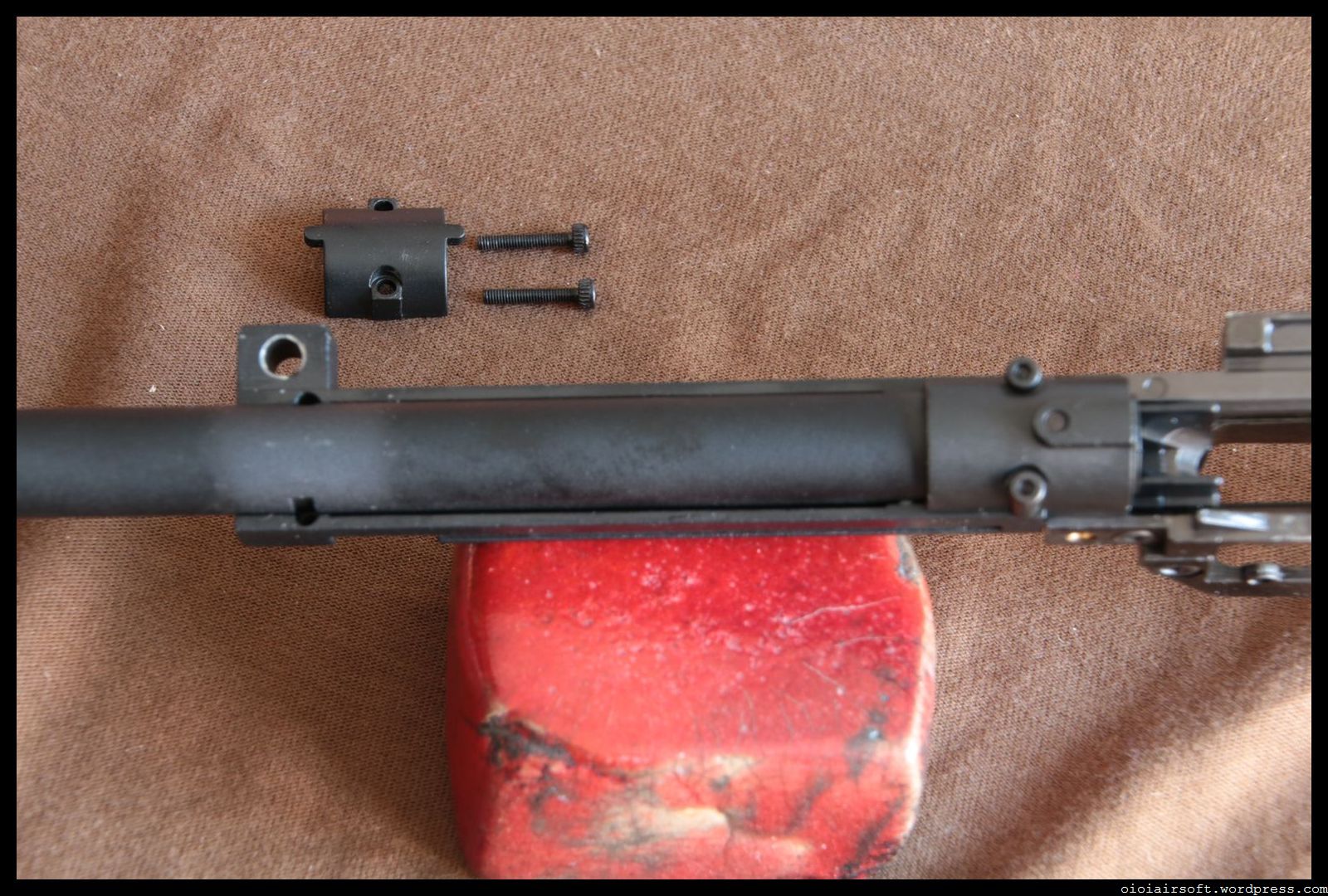

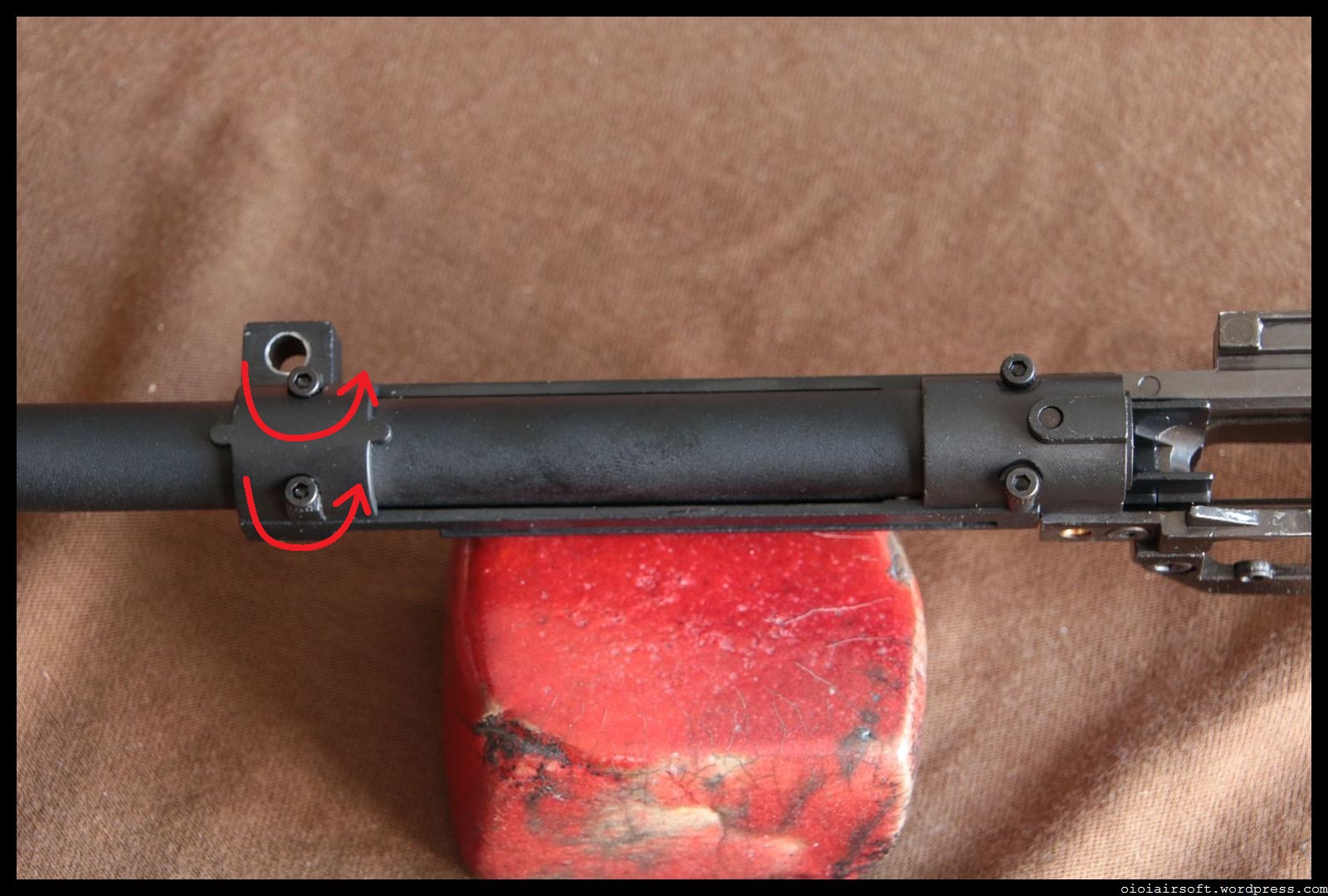

16 – Remove the 2 screws that hold the barrel on the receiver.

IMG_0216mod



IMG_0222

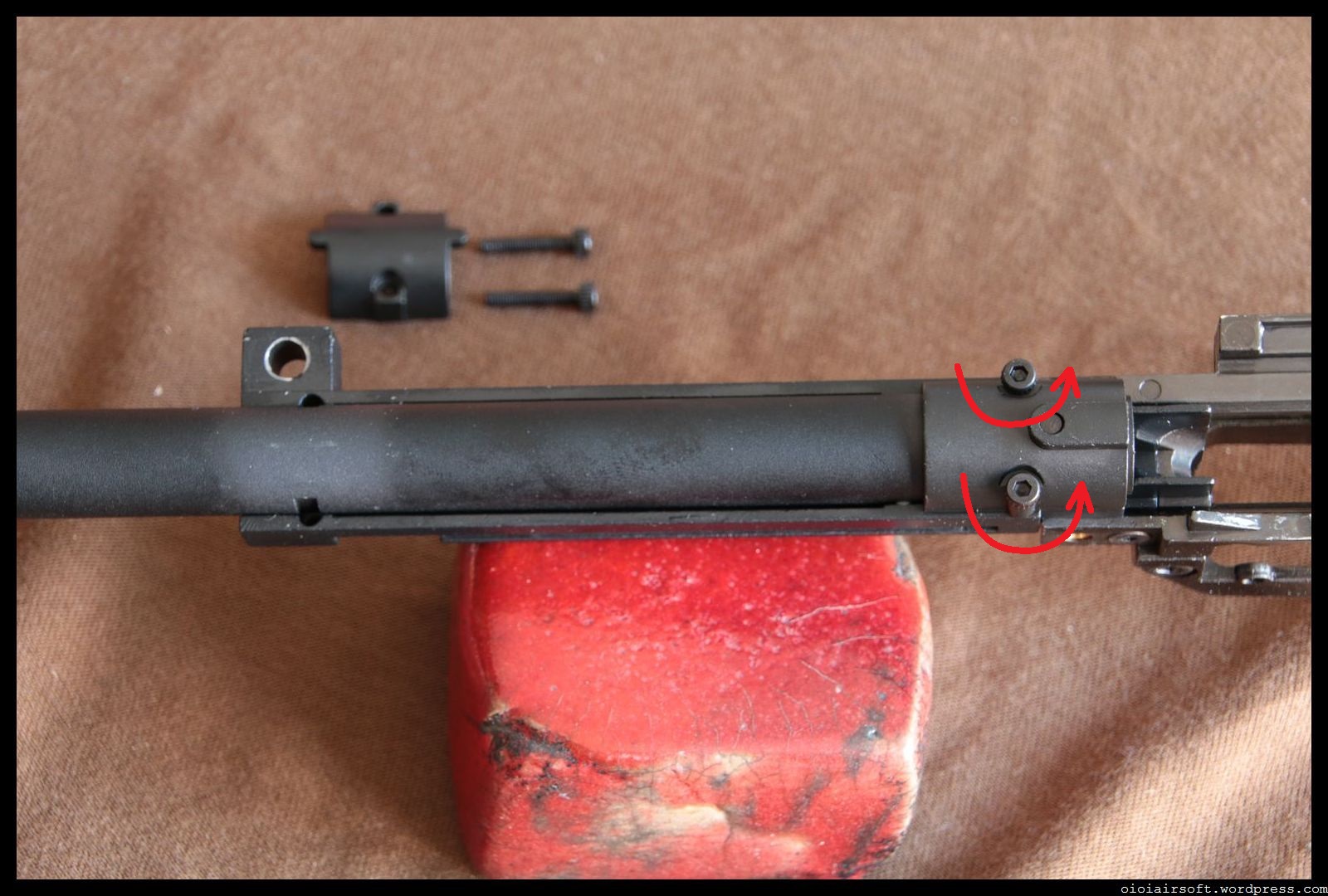

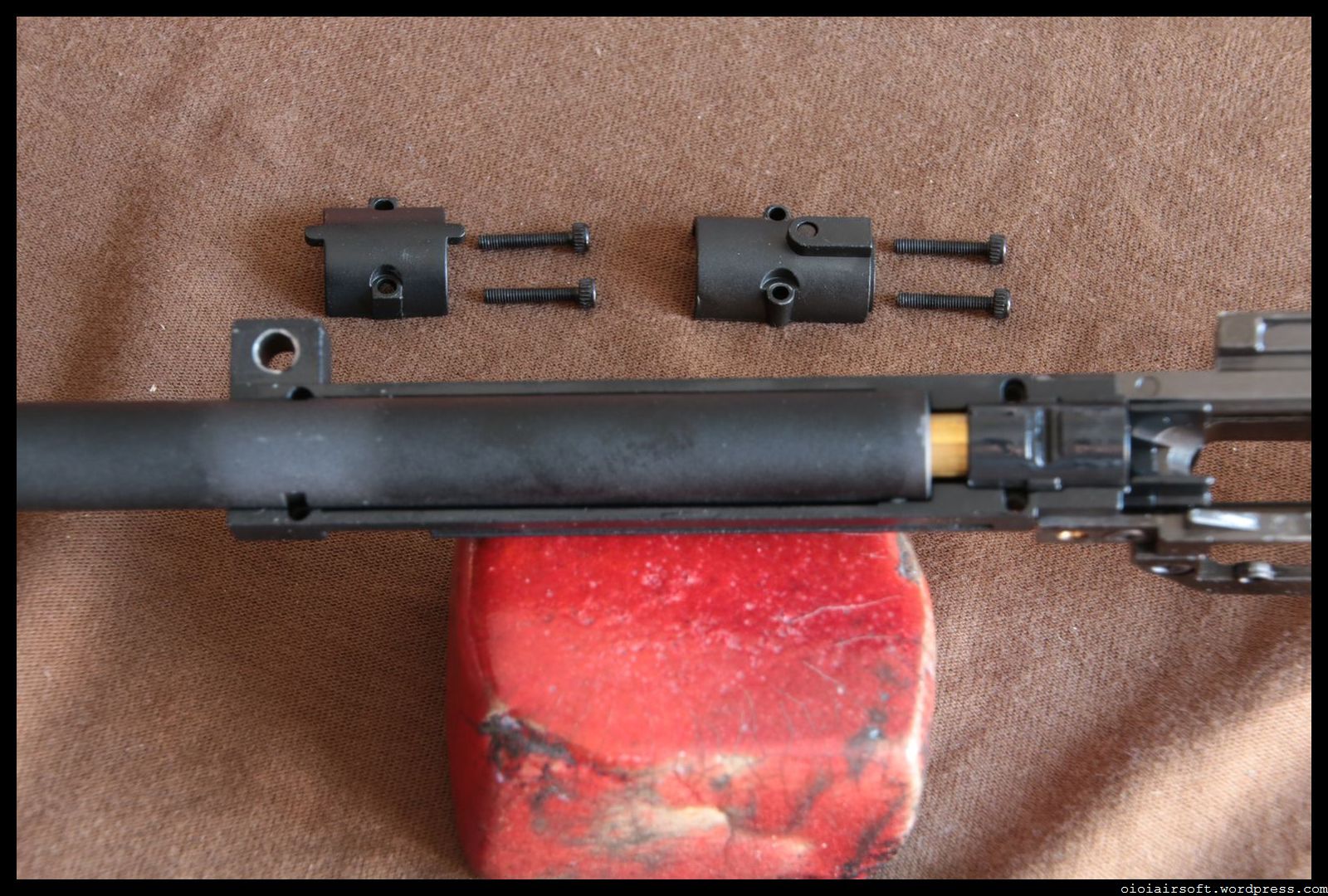

17 – Same for the screws of the hop-up unit.

IMG_0219mod



IMG_0228

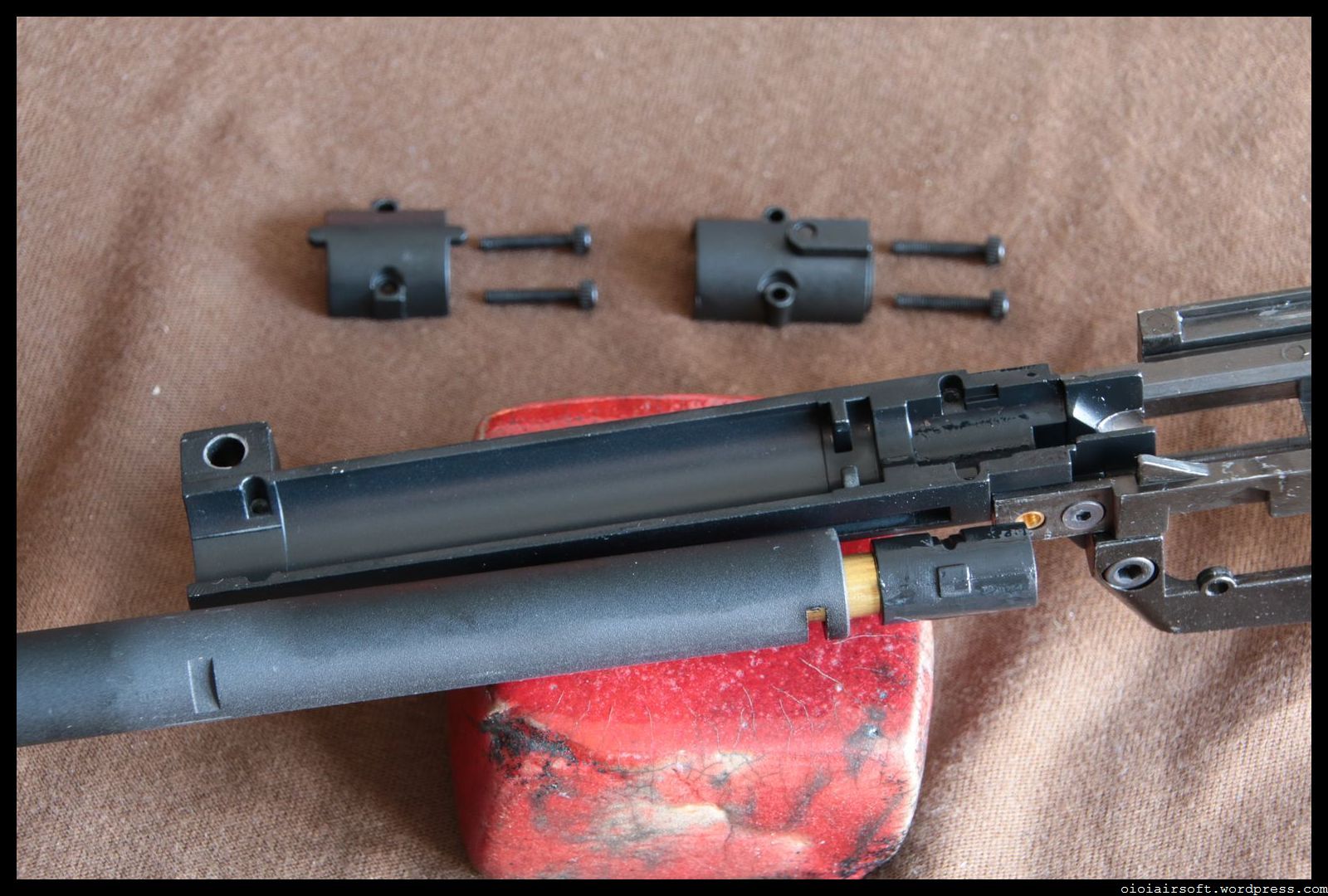

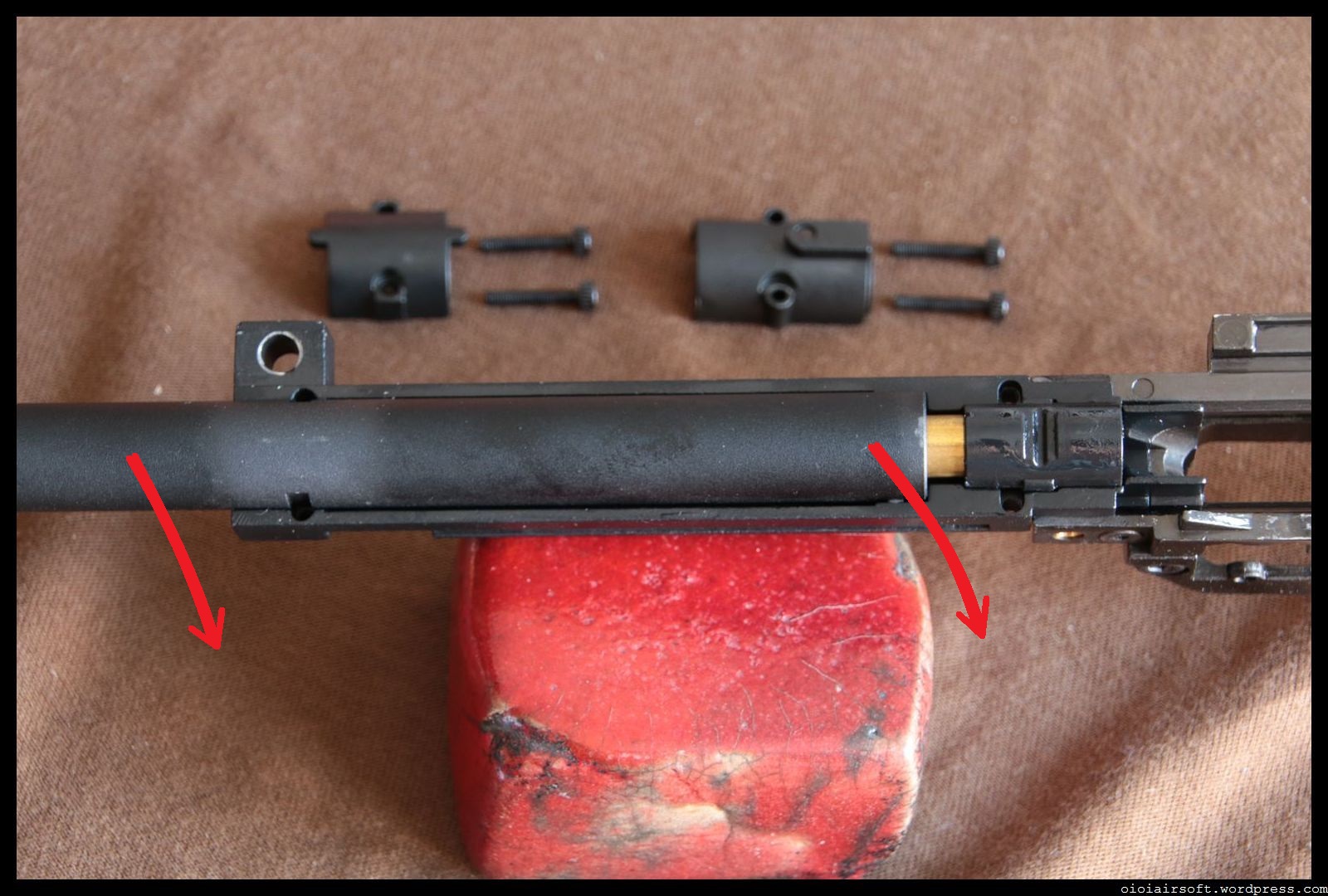

18 – Just remove the barrel.

IMG_0225mod



IMG_0231

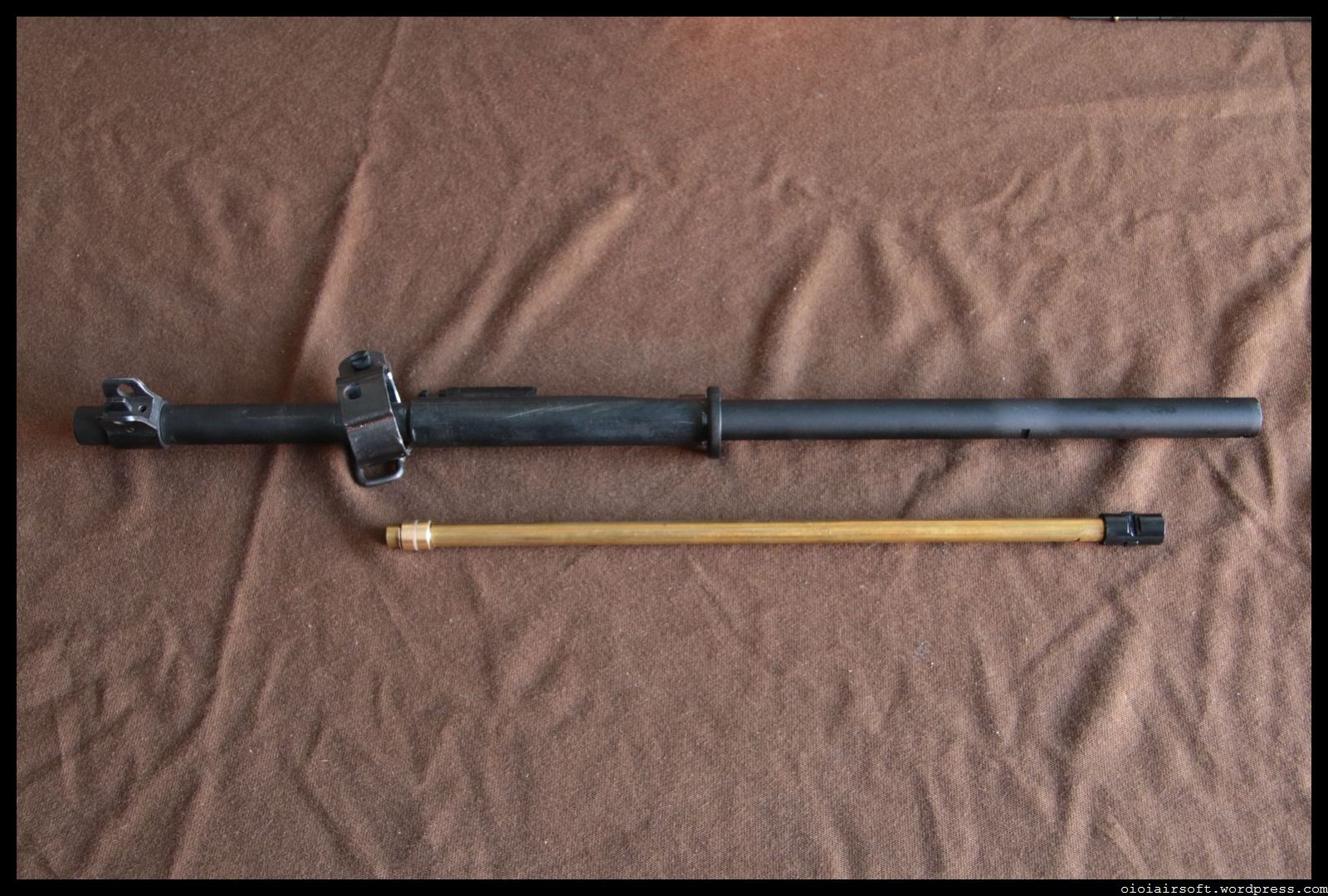

19 – Separate the outer and inner barrel. You feel the scam made in King Arms?

IMG_0240

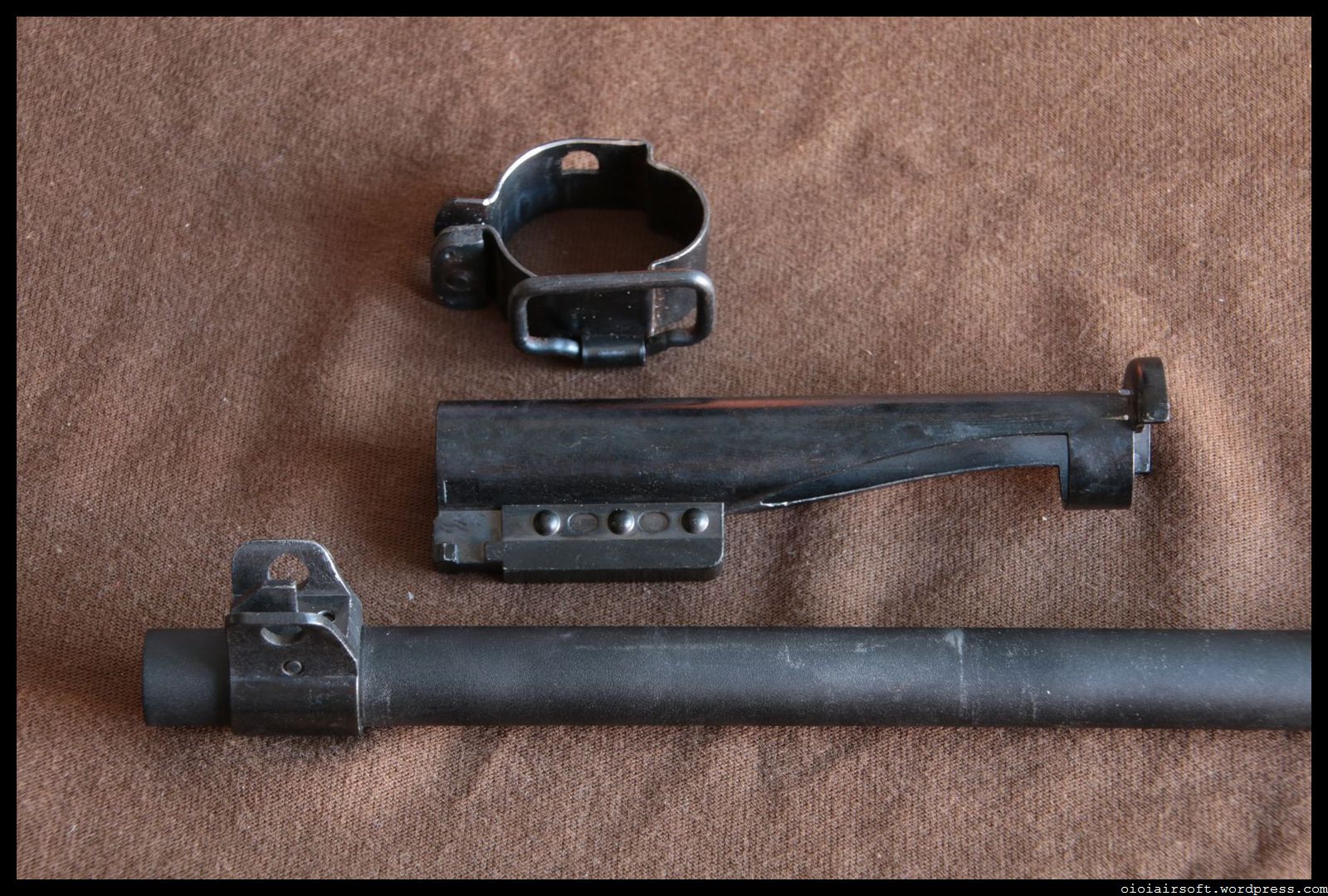

20 – Remove sling holder and bayonet lug. It is also possible to remove them from the start by removing the front sight.

IMG_0244

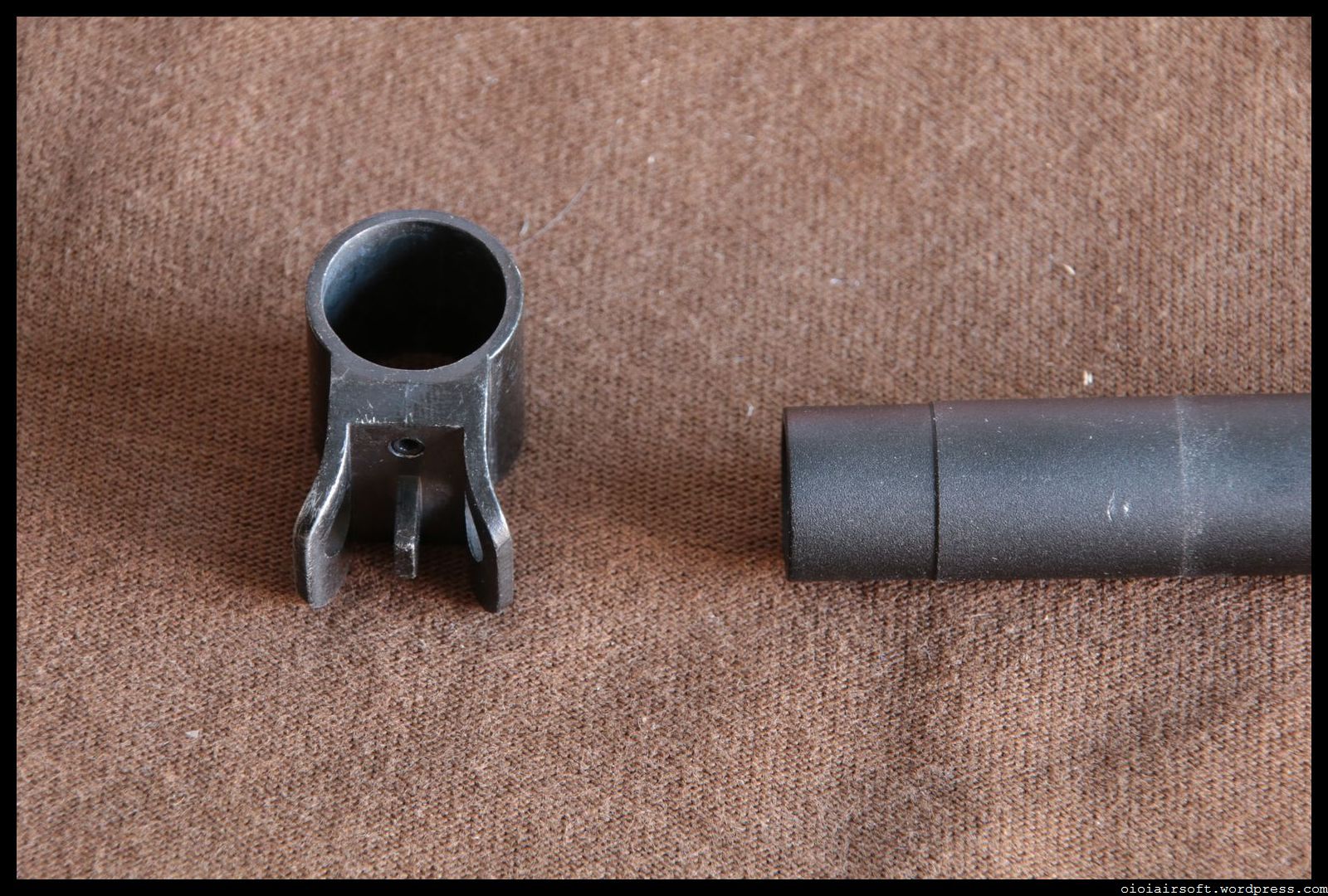

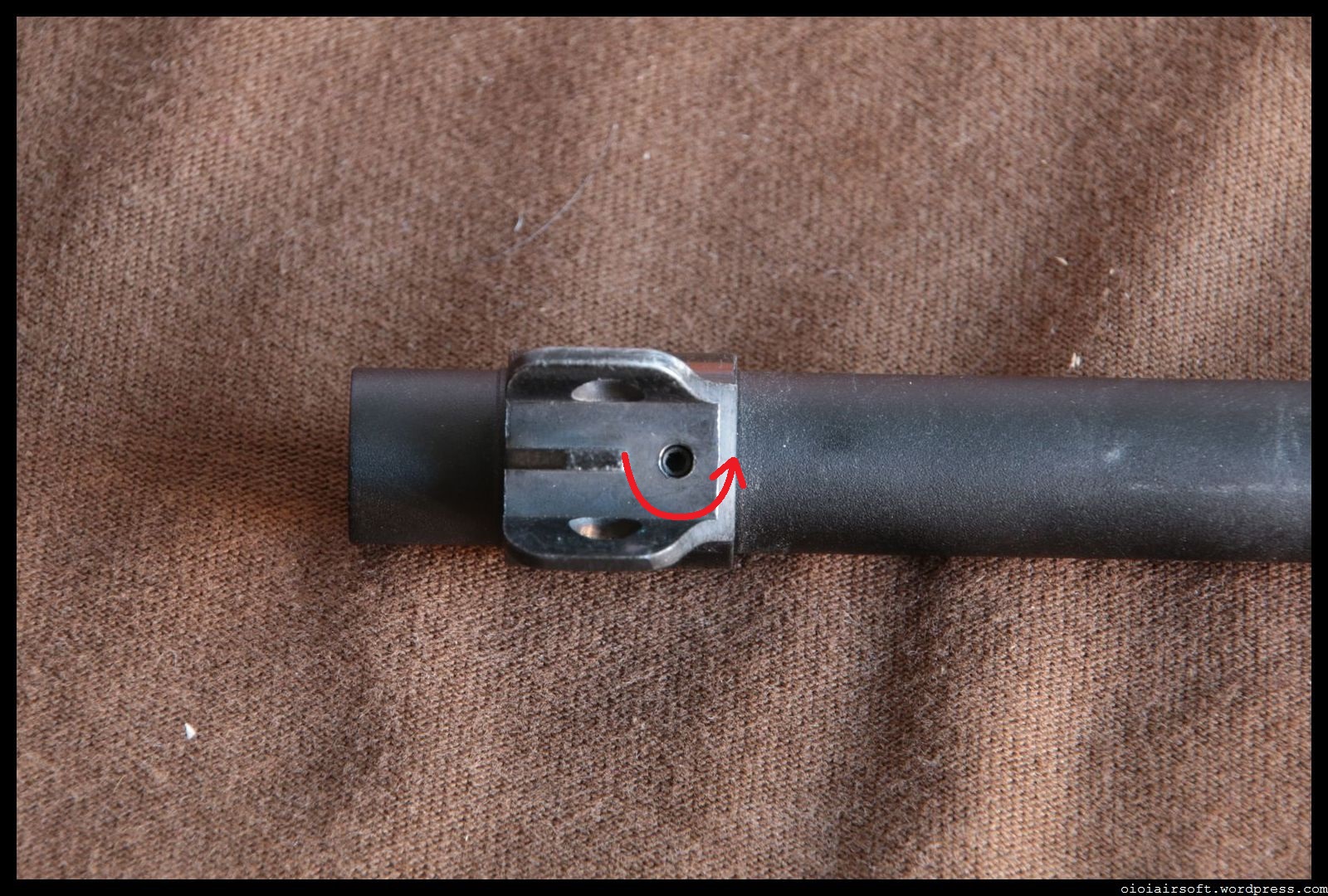

21 – You can remove the front sight by unscrewing the hex screw. But as it’s pretty boring to properly readjust it, do it only if it is not well placed!

IMG_0246mod



IMG_0250

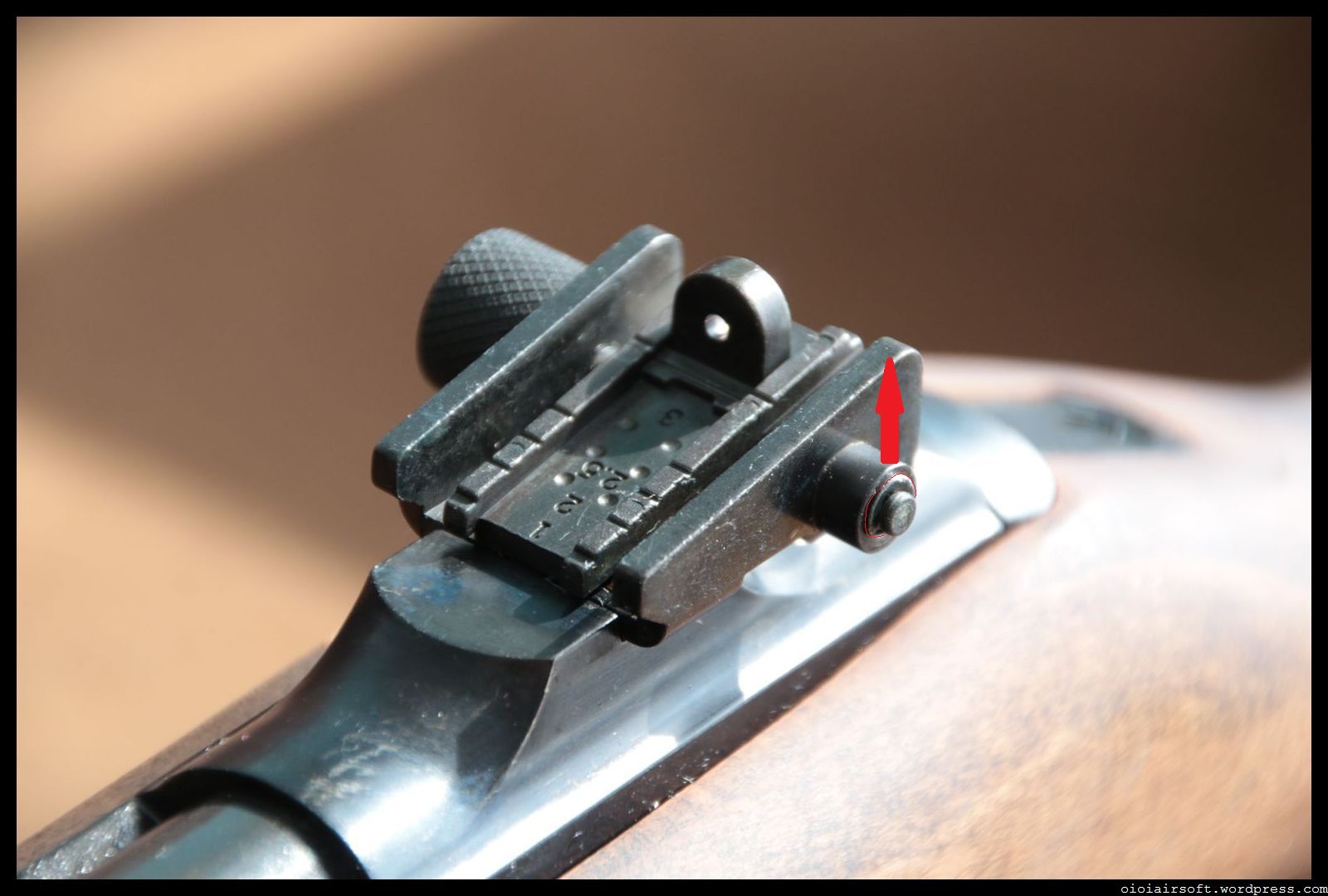

22 – For the rear sight, remove the pin at the end of the adjusting screw and unscrew it. Be careful not to lose the small pin and spring that are in the head of the big screw.

IMG_9945mod



IMG_0270

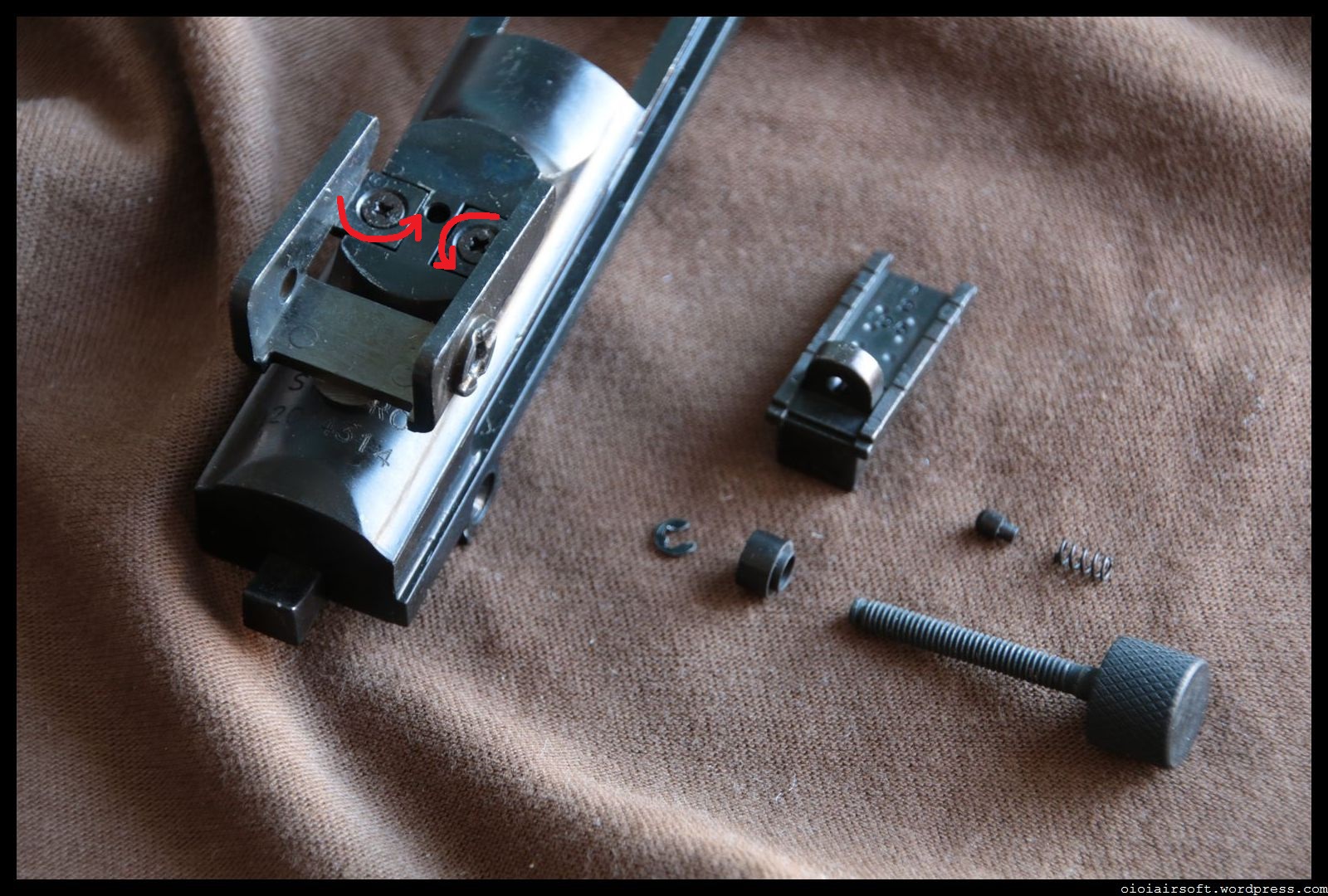

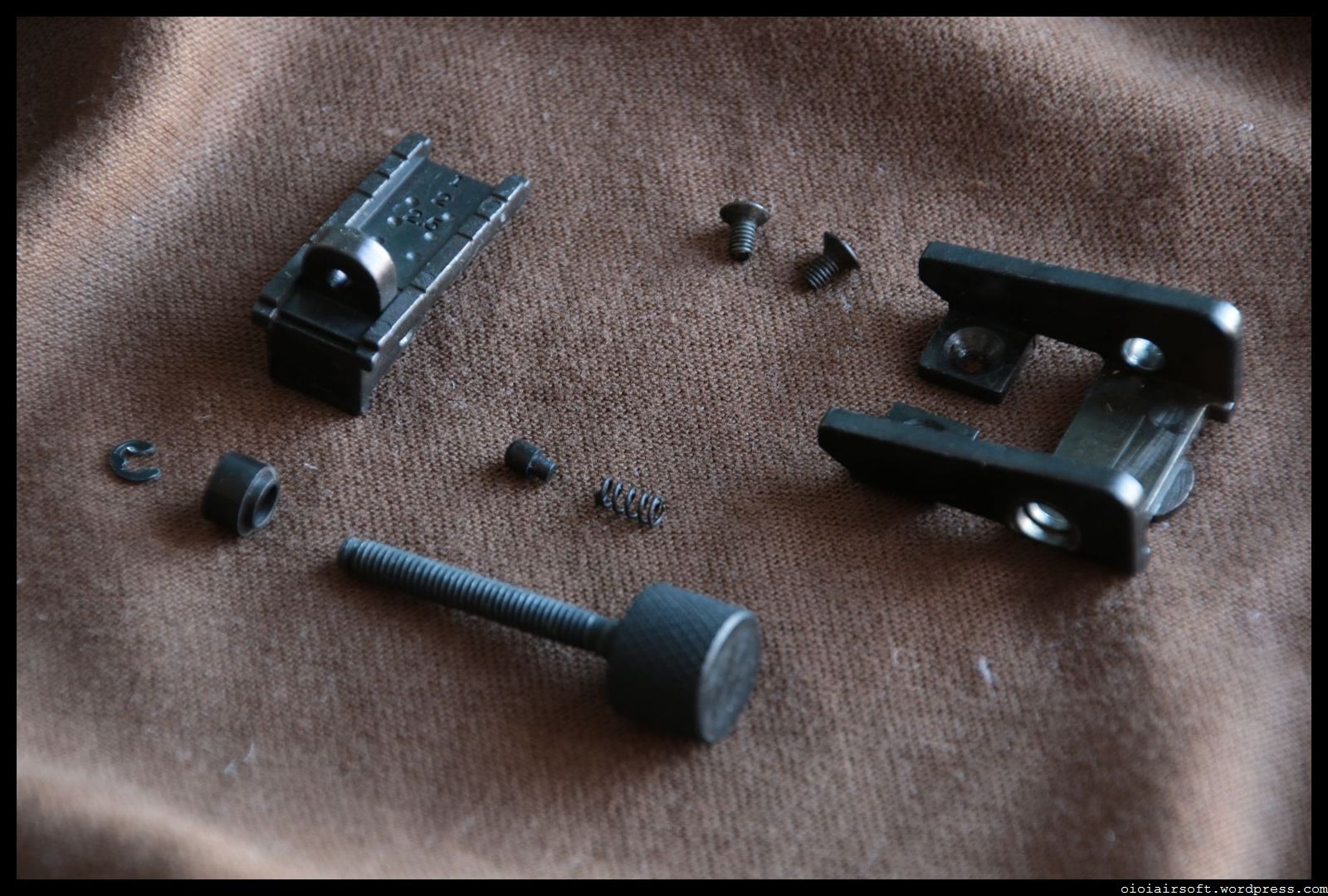

23 – And remove the two Phillips screws.

IMG_0270mod



IMG_0279



And now your M1 Carbine is disassembled. I have not dismantled the trigger assembly that seems complex and that don’t necessarily require a disassembly unless it breaks.

Those who have already dismantled a Marushin M1 will not be disturbed. There are a few minor differences that do not change much … That’s the problem! I will detail all this in the next chapter.

Oioi.
